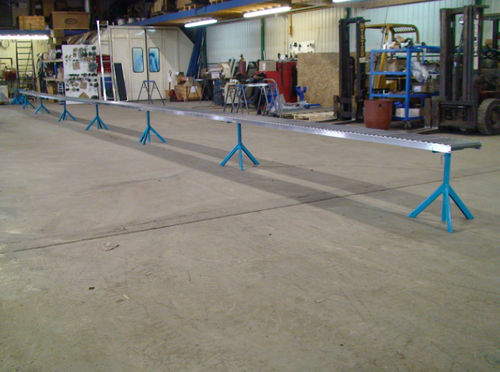

Roller conveyor SB12

for containersheight-adjustable

Product overview
Economical roller conveyor designed for moving crates, trays and containers in horticulture and agriculture. Resistant to moisture, water, sand and soil. Corrosion-free bushing bearings ensure continuous roller rotation.

Dimensions

• Frame material: aluminum
• Roller material: PVC
• Bearings: stainless steel (SST) and UHMW
• Available lengths: 10' (3.0 m) or 5' (1.52 m)
• Conveyor width: 14" (36 cm)
• Roller diameter: 1 1/2" (38 mm)
• Roller spacing: every 2" (5 cm)

Options

• Tripod
• Connector for linking conveyors

Tripod
Adjustable tripod compatible with SB12 roller conveyor for work-height positioning.

Dimensions

• Adjustable height: 27" (69 cm) to 47" (119 cm)

Technical specifications

• Model: SB12
• Function: roller conveyor for moving containers
• Frame: aluminum
• Rollers: PVC
• Bearings: stainless steel (SST) and UHMW (corrosion-free bushing bearing)
• Available lengths: 10' (3.0 m) or 5' (1.52 m)
• Width: 14" (36 cm)
• Roller diameter/spacing: 1 1/2" diameter, spaced every 2" (5 cm)
• Options: tripod, connector
