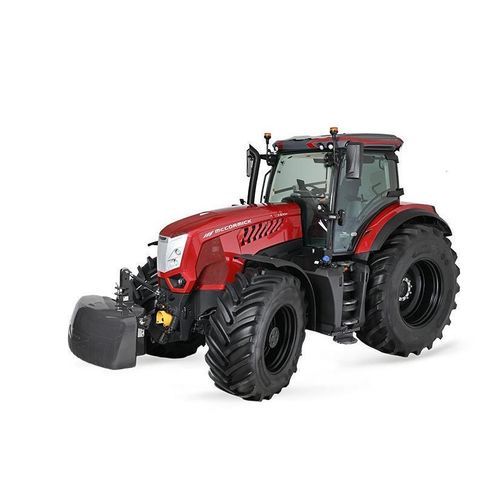

Continuously variable tractor X8 VT-Drive

6-cylinder3-point hitchfront PTO

Overview
The X8 VT-Drive is an agricultural tractor designed for high performance, efficiency and operator comfort. It features the VT-Drive continuously variable transmission, FPT N67 Stage V engine up to 313 HP, and a high-flow hydraulic system with a 212 l/min pump. The machine is intended for heavy open-field work and versatile agricultural tasks.

Cab

• Clever Cab Plus: four-post design with +14% glass area for improved visibility
• Electrohydraulic semi-active cab suspension
• Heated and ventilated air-suspension swivel seat with rotating headrest
• Multifunction armrest integrated with seat and ergonomic joystick
• Steering wheel and dashboard adjustable in tilt and depth
• Powerful Alpine 7" touchscreen radio with DAB+, MP3, Bluetooth, microphone and USB; Android Auto and Apple CarPlay
• Efficient climate control for uniform airflow distribution
• Sound insulation: 67 dBA; extra-large heated electric rearview mirrors
• 20 adjustable full LED work lights

Performance

• FPT N67 Stage V engine, eVGT variable-geometry turbocharger, intercooler and common rail system
• Up to 313 HP; high torque backup up to 40%
• HI-eSCR2 emissions system (Stage V compliance)
• 550-litre fuel tank and 71-litre AdBlue tank
• Max speed: 50 km/h at 1580 rpm; listed minimum speed: 40 m/h (as per source)

Transmission & Hydraulics

• VT-Drive continuously variable transmission with four programmable speed ranges
• VT-Drive controls integrated into the EasyPilot joystick for intuitive operation
• DSM Plus: 12" display and 12" dashboard with intuitive functions
• Closed-centre hydraulic system with 212 l/min variable displacement pump
• Electronic rear hitch (up to 12,000 kg lift capacity) and electronic front hitch (up to 5,000 kg)
• Three-speed PTO: 540Eco / 1000 / 1000Eco rpm; Front PTO: 1000Eco rpm
• Up to 11 electrohydraulic remote valves (6 rear with one 3-way flow divider, 3 front, 2 mid-mounted)

Efficiency & Traction

• Suspended front axle and rear axle with wet disc brakes
• Automatic 4WD and differential lock engagement; full locking differentials for maximum tractive performance
• Reverse Power Shuttle for smooth and fast forward/reverse shifting
• Viscotronic fan for efficient engine cooling and reduced fuel consumption
• Best In Class scheduled maintenance every 1000 hours; coolers open out for simple and fast cleaning

Versatility & Productivity

• High lift capacities front and rear, multiple PTO and remote valve options for a wide range of implements
• Tyre size option up to 900/60 R42 (Ø 2.15 m)
• Designed to support heavy-duty open-field and versatile agricultural tasks

Connectivity

• ISOBUS and Precision Steering Management systems
• Fleet & Remote Diagnostics Management and McCormick Farm for fleet and farm management

Design & Comfort Highlights

• Clever Cab Plus: automotive-style fit and finish with soft-touch materials
• Ergonomic layout with more room and larger glazed areas
• Integrated operator controls and advanced displays to reduce operator workload

Technical specifications

• Model name: X8 VT-Drive
• Engine: FPT N67 Stage V, 6 cyl, 6.7 L
• Power (HP): 273 / 313
• Transmission: VT-Drive continuously variable transmission (4 ranges)
• Hydraulics pump flow: 212 l/min (variable displacement)
• Rear hitch lift capacity: up to 12,000 kg (electronic)
• Front hitch lift capacity: up to 5,000 kg (electronic)
• PTO: 540Eco / 1000 / 1000Eco rpm; Front PTO 1000Eco rpm
• Fuel tank: 550 L; AdBlue tank: 71 L
• Max speed: 50 km/h at 1580 rpm
• Min speed (listed): 40 m/h
• Tyre size up to: 900/60 R42 (Ø 2.15 m)
• Cab noise level: 67 dBA
• Seat: heated & ventilated air-suspension swivel seat with rotating headrest
• Display: DSM Plus 12" and 12" dashboard
• Connectivity: ISOBUS, Precision Steering Management, Fleet & Remote Diagnostics
• Other: eVGT turbo, HI-eSCR2 emissions system, high torque backup up to 40%
