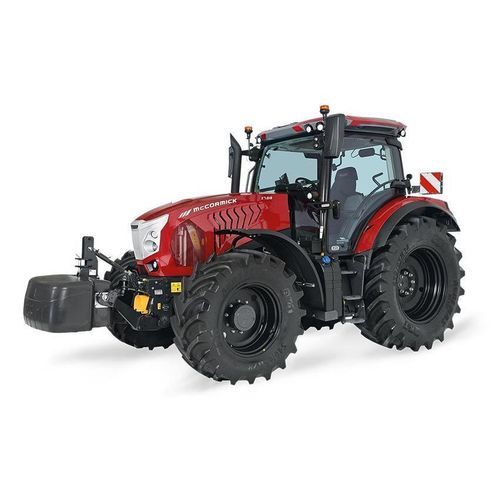

Continuously variable tractor X7 SWBpowershuttle4-cylinder6-cylinder
Add to favorites
Compare this product
Characteristics
- Transmission
- continuously variable, powershuttle
- Number of cylinders
- 4-cylinder, 6-cylinder
- Other characteristic
- 4 wheel drive, with cab
- Engine power
165 ch, 175 ch, 176 ch
(165 hp, 175 hp, 176 hp)- Displacement
5 l, 7 l
(1 gal, 2 gal)- Wheelbase
2,651 mm, 2,760 mm
(104.4 in, 108.7 in)- PTO speed
1,600 rpm, 1,608 rpm, 1,995 rpm, 2,005 rpm
(10,053.1 rad.min-1, 10,103.4 rad.min-1, 12,535 rad.min-1, 12,597.8 rad.min-1)- Torque
652 Nm, 700 Nm
(481 ft.lb, 516 ft.lb)- Maximum speed
40 km/h, 50 km/h
(24.9 mph, 31.1 mph)- Fuel tank capacity
280 l
(74 gal)- Total length
5,235 mm, 5,344 mm
(206.1 in, 210.4 in)- Total height
2,159 mm, 2,942 mm
(85 in, 115.8 in)- Weight
11,500 kg
(25,353.2 lb)
Description
Overview
McCormick X7 SWB short-wheelbase tractors combine compact dimensions with agricultural performance for fieldwork in variable soil and seasonal conditions. Available in 4- and 6-cylinder self-supporting engine configurations, the X7 SWB is aimed at farmers and contractors needing a more maneuverable option than long-wheelbase models.
Key highlights
Specifications (summary)
Efficiency
Versatility
Connectivity
Productivity (transmission & controls)
Comfort
Technical specifications
McCormick X7 SWB short-wheelbase tractors combine compact dimensions with agricultural performance for fieldwork in variable soil and seasonal conditions. Available in 4- and 6-cylinder self-supporting engine configurations, the X7 SWB is aimed at farmers and contractors needing a more maneuverable option than long-wheelbase models.
Key highlights
- Engine options: 4- and 6-cylinder self-supporting engines
- Displacement: 4.5 - 6.7 L
- Rated power: 165 - 176 HP
- Transmission: VT-Drive (CVT) or P6-Drive (PowerShift)
Specifications (summary)
- Turbocharged with intercooler and common rail injection
- Power Plus system: +10 HP boost available
- High torque reserve for load-intensive tasks
- Self-supporting engine architecture
- HI-eSCR2 emission treatment (Stage V compliant)
- Fuel tank up to 280 L; AdBlue tank 46 L
Efficiency
- Independent front suspension (IFS) available
- Full locking differentials and automatic 4WD engagement
- Reverse Power Shuttle for quick forward/reverse changes
- Engine Brake function for improved downhill control
- Up to 20 adjustable full-LED work lights for all-round visibility
- Large heated electric mirrors with wide-angle view
- Coolers open out for easy cleaning
Versatility
- Closed-centre hydraulic system with 160 L/min variable displacement pump
- Electronic rear hitch with up to 9,300 kg lift capacity
- Standard front hitch with up to 3,500 kg lift capacity
- Up to 8 electrohydraulic remote valves plus one 3-way flow divider
- Rear PTO: 540 / 540Eco / 1000 / 1000Eco rpm; Front PTO: 1000Eco rpm
Connectivity
- ISOBUS compatibility and Precision Steering Management
- Fleet & Remote Diagnostics and McCormick Farm farm/fleet management
Productivity (transmission & controls)
- DSM Plus: 12" display and 12" dashboard with intuitive interface
- VT-Drive: CVT with 4 programmable speed ranges, EasyPilot joystick control, up to 50 km/h, minimum speeds down to 40 m/h
- P6-Drive: 6 PowerShift speeds and 5 robotised ranges; up to 54F/27R with creeper; Smart APS Auto PowerShift; De-Clutch and Stop & Action; ECO mode and Oil-Cut-Off
Comfort
- Clever Cab Plus: four-post cab with increased glazed area
- Electrohydraulic semi-active cab suspension
- Ergonomic layout with heated and ventilated air-suspension swivel seat
- Multifunction armrest integrated with joystick
- Adjustable steering wheel and dashboard, Alpine 7" touchscreen radio with DAB+, Bluetooth, USB, Android Auto and Apple CarPlay
- Efficient climate control for uniform airflow
Technical specifications
- Commercial name / series: X7 SWB
- Engine cylinders: 4 or 6
- Engine displacement: 4.5 - 6.7 L
- Rated power: 165 - 176 HP
- Turbocharger, intercooler and common rail injection
- Power Plus: +10 HP available
- High torque reserve
- Self-supporting engine architecture
- Emissions: HI-eSCR2 (Stage V)
- Fuel tank: up to 280 L; AdBlue: 46 L
- Transmissions: VT-Drive (CVT) or P6-Drive (PowerShift)
- Front axle: independent suspension option
- Differentials: full locking
- Hydraulics: closed-centre, 160 L/min variable displacement pump
- Rear hitch lift capacity: up to 9,300 kg (electronic)
- Front hitch lift capacity: up to 3,500 kg (standard)
- Remote valves: up to 8 electrohydraulic + 1 3-way divider
- PTO: Rear 540 / 540Eco / 1000 / 1000Eco; Front 1000Eco
- Lighting: up to 20 LED work lights (12 on cab roof)
- Cab: Clever Cab Plus with enhanced visibility and semi-active suspension
