Power-shift tractor X4F PLAT
for row crops4-cylinderwide

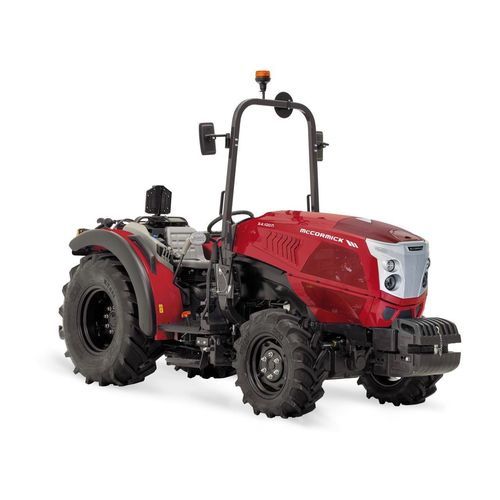

Power-shift tractor - X4F PLAT - McCormick USA - for row crops / 4-cylinder / wide
Power-shift tractor - X4F PLAT - McCormick USA - for row crops / 4-cylinder / wide
Power-shift tractor - X4F PLAT - McCormick USA - for row crops / 4-cylinder / wide - image - 2
Power-shift tractor - X4F PLAT - McCormick USA - for row crops / 4-cylinder / wide - image - 3
Power-shift tractor - X4F PLAT - McCormick USA - for row crops / 4-cylinder / wide - image - 4
Power-shift tractor - X4F PLAT - McCormick USA - for row crops / 4-cylinder / wide - image - 5
Power-shift tractor - X4F PLAT - McCormick USA - for row crops / 4-cylinder / wide - image - 6
Power-shift tractor - X4F PLAT - McCormick USA - for row crops / 4-cylinder / wide - image - 7
Power-shift tractor - X4F PLAT - McCormick USA - for row crops / 4-cylinder / wide - image - 8
Add to favorites
Compare this product

Characteristics

Transmission
power-shift
Applications
for row crops
Number of cylinders
4-cylinder
Other characteristic
wide, specialty, with cab
Engine power

Min.: 75 ch
(75 hp)

Max.: 112 ch
(112 hp)

Displacement

2,900 cm³
(98 US fl oz)

Wheelbase

2,140 mm, 2,190 mm
(84.3 in, 86.2 in)

PTO speed

1,621 rpm, 1,628 rpm, 1,917 rpm, 1,944 rpm
(10,185 rad.min-1, 10,229 rad.min-1, 12,044.9 rad.min-1, 12,214.5 rad.min-1)

Torque

Min.: 375 Nm
(277 ft.lb)

Max.: 420 Nm
(310 ft.lb)

Maximum speed

40 km/h
(24.9 mph)

Fuel tank capacity

80 l, 85 l
(21.1 gal, 22.5 gal)

Total height

1,500 mm, 1,710 mm, 1,930 mm
(59.1 in, 67.3 in, 76 in)

Weight

5,250 kg
(11,574.3 lb)

Description

Overview
The X4F PLAT renews the specialty tractor segment with advanced Technology, Comfort and Versatility. Designed for excellent inter-row manoeuvrability, it features sleek bonnet lines and an automotive-style cab. The McCormick Metallic Red version adds metallic red paint and matt black rims for a distinctive appearance.

Key specifications (hero)
  • Engine Cyl / L: 4 / 2.9
  • Power (HP): 75 / 90 / 95 / 102 / 112
  • Transmission: XtraShift / Power Four / Speed Four

Features
  • Deutz TCD Stage V 4-cylinder engine, 2.9-litre displacement, power ratings from 75 to 112 hp.
  • Electronic rear hitch with 2,700 kg lift capacity (XL version: 3,400 kg).
  • ELS – Ergonomic Lift System for easier and faster rear hitch operation.

Comfort
  • Spacious, ergonomically designed driving position with excellent all-round visibility.
  • Platform suspended on Hydro-Silent Blocks for reduced vibration.
  • F and XL versions available with suspended front axle.
  • Air-suspended seat and intuitive controls for extended operator comfort.

Efficiency
  • Extended maintenance intervals up to 1,000 hours.
  • Reverse Power Shuttle with electronically modulated shuttle response for smooth direction changes.

Versatility
  • Speed Four transmission: 4 speeds × 3 ranges with synchro or power shuttle; optional creeper and other variants (Hi-Lo Power Four, HML XtraShift).
  • Configurable open-centre hydraulic system: dual pump (58 + 30 l/min) or triple pump (30 + 58 + 36 l/min); up to 88 l/min available to the rear hitch and remotes.
  • Wide tyre choice; reinforced waffle rims available to support higher loads and improve stability during transport.

Connectivity
  • Fleet & Remote Diagnostics Management via McCormick Farm.

Productivity
  • Fold-down elements above the bonnet line for improved visibility and service access.
  • GB version: driving position is the lowest in the segment for enhanced stability.

Design
  • McCormick Metallic Red paint with matt black rims for a distinctive, aggressive look.

Technical specifications
  • Engine: Deutz TCD Stage V, 4-cylinder, 2.9 L
  • Power range: 75 – 112 HP (available ratings: 75 / 90 / 95 / 102 / 112 HP)
  • Transmission options: XtraShift, Power Four, Speed Four (4 speeds × 3 ranges; creeper and optional Hi-Lo Power Four or HML XtraShift)
  • Rear hitch: electronic, standard lift capacity 2,700 kg; XL version 3,400 kg
  • ELS (Ergonomic Lift System) for rear hitch operation
  • Hydraulics: configurable open-centre system; dual pump 58 + 30 l/min or triple pump 30 + 58 + 36 l/min; up to 88 l/min supplied to rear hitch/remotes
  • Maintenance interval: 1,000 hours
  • Platform: suspended on Hydro-Silent Blocks; F and XL versions may have suspended front axle
  • Seat: air-suspended
  • Tyres/rims: wide tyre choice; reinforced waffle rims available for higher loads
