Crawler tractor X4T

arboriculture4-cylindertracked

Overview

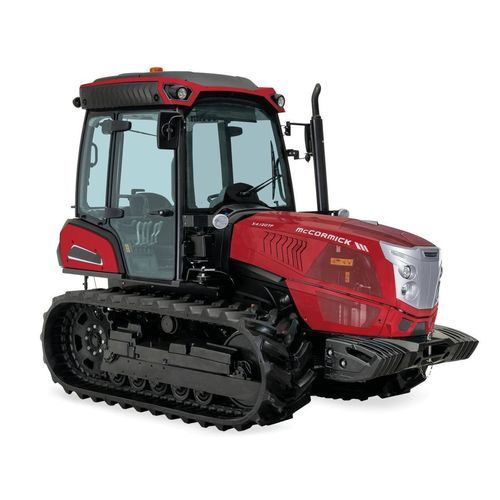

McCormick X4T crawler tractor designed for specialized work in orchards and mountain terrains. Stage V compliant powertrain with passive DPF and DOC; models above 56 kW include SCR with a dedicated 10.5 L AdBlue tank. Available in F (orchards) and M (mountain) configurations, with choice of steel (semi-lubricated) or rubber tracks to suit ground conditions.

Key features

• Stage V engine with passive DPF and DOC; SCR fitted on models >56 kW (10.5 L AdBlue tank)
• Configurations for orchards (F) and mountain work (M)
• Track options: steel (semi-lubricated) or rubber
• Designed for stability, handling and operator safety in confined or steep terrains

Track and undercarriage details
F version track width: 1,100 mm; steel track pad widths: 310–360 mm. M version track width: 1,300 mm; steel track pad widths: 400 or 450 mm. Rubber tread width: 400 mm for both F and M. Effective track widths: F model 1,132 mm; M model 1,300 mm.

Hero specifications
Engine Cyl / L: 4 / 2.9
Power (HP): 75 / 90 / 95 / 102 / 112
Transmission: Speed Four

Additional information
The X4T is intended for specialized agricultural and mountain applications where low ground pressure and track stability are required. Choice of steel or rubber tracks allows adaptation to soil type and working environment.

Technical specifications

• Model family: CP05 X4T
• Emission standard: Stage V
• Aftertreatment: Passive DPF, DOC; SCR for >56 kW models (10.5 L AdBlue)
• Engine: 4 cylinders, 2.9 L
• Available power ratings (HP): 75, 90, 95, 102, 112
• Transmission: Speed Four
• Versions: F (orchards) and M (mountain)
• Track options: steel (semi-lubricated) or rubber
• F version: track width 1,100 mm; steel pad widths 310–360 mm; effective rubber-track width 1,132 mm (rubber tread 400 mm)
• M version: track width 1,300 mm; steel pad widths 400 or 450 mm; effective rubber-track width 1,300 mm (rubber tread 400 mm)
