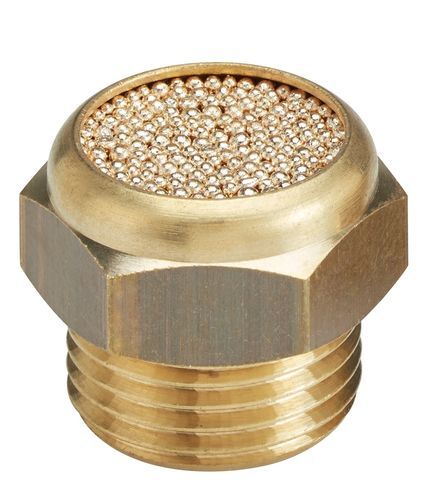

Ventilation air inlet SILENZIATORE

Product overview
Brass silencer breather cap with spherical sintered bronze filter. Combines vent and silencing functions, suitable for pneumatic systems, hydraulic applications and cylinders.
The sintered spherical bronze filter provides a filtration degree of 100 microns.

Important
The product is not designed to operate in an inverted position. Installation or testing inverted is outside the design specifications and may affect correct operation.

Technical Info - GAS ISO 228
THREAD - f - h - CH - μ
1/8" - 6 - 13 - 13 - 100
1/4" - 8 - 17 - 16 - 100
3/8" - 7.5 - 17 - 19 - 100
1/2" - 10 - 19 - 24 - 100
3/4" - 10 - 19 - 30 - 100
1" - 10 - 20 - 36 - 100

Technical Info - MB METRIC
THREAD - f - h - CH - μ
M5 - 4 - 8.5 - 8 - 100
M7 - 5 - 10.5 - 8 - 100

Images (included)
SILENZIATORE1.jpg, SILENZIATORE2.jpg, SILENZIATORE_DIS.jpg, SILENZIATORE_DIS_I.jpg

Characteristics / technical specifications

• Brand: Mintor Srl
• Product type: Silencer breather cap
• Body material: Brass
• Filter material: Sintered spherical bronze
• Filtration degree: 100 microns
• Function: Vent and silencer
• Recommended applications: Pneumatic systems, hydraulic applications, cylinders
• Installation note: Not designed to operate in inverted position; inverted installation/testing not compliant
• Available threads (GAS ISO 228): 1/8", 1/4", 3/8", 1/2", 3/4", 1"
• Available threads (MB Metric): M5, M7
