Analog thermometer PLTB

bi-metal°C

Product description

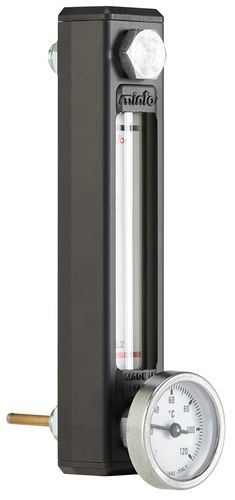

Vertical level indicator with bimetallic thermometer. Used for the control of fluids on large tanks. Protection in black anodized aluminium alloy and transparent part in polyamide. Supplied with O-rings, screws and nuts for fixing. Easy to assemble; allows a tolerance of 0.5 mm on the center distance of the holes while maintaining a perfect seal.

Warnings
Avoid contact with alcohol, solvents, trieline, petrol, paints and petroleum.

Operating conditions
Recommended operating temperature: 0°C ÷ +80°C.
Pressure: 3 bar MAX.
Fixing torque: 10 Nm max.

Table - Dimensions (columns separated by "|")
TYPE | CODE | L | r | v | c | i | f | h | a | b | t | D | s
PLTB1 | 1VPLTB1A | 109 | 34 | 37 | 16.5 | 76 | M 10x1,5 | 21.5 | 11 | 29 | 17 | 40 | 40
PLTB2 | 1VPLTB2A | 160 | 34 | 88 | 16.5 | 127 | M 12x1,75 | 21.5 | 16 | 29 | 17 | 40 | 40
PLTB3 | 1VPLTB3A | 287 | 34 | 215 | 16.5 | 254 | M 12x1,75 | 21.5 | 16 | 29 | 17 | 40 | 40

Characteristics / technical specifications

• Type: Vertical visual level indicator with bimetallic thermometer.
• Body protection: black anodized aluminium alloy.
• Transparent part: polyamide.
• Supplied with: O-rings, screws and nuts for fixing.
• Assembly tolerance: allows 0.5 mm tolerance on center distance of holes while maintaining seal.
• Do not expose to: alcohol, solvents, trieline, petrol, paints, petroleum.
• Recommended operating temperature: 0°C ÷ +80°C.
• Maximum pressure: 3 bar.
• Maximum fixing torque: 10 Nm.
• Available types / codes and dimensional data: see table above (PLTB1, PLTB2, PLTB3).
