Elbow irrigation fitting 90°

Product description

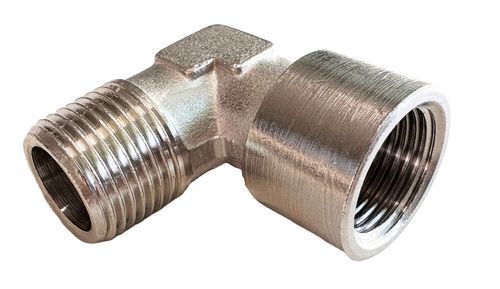

90° elbow with tapered male and cylindrical female connections, designed to ensure vertical installation of breather plugs for lateral applications on gearboxes and tanks. Nickel-plated brass body.

Technical info (table)
CODE | D1 | D2 | CH | L1 | L2 | L3
1CURV00O | 1/8" TAPERED | 1/8" CYLINDRICAL | 10 | 7.5 | 18 | 21
1CURV10O | 1/4" TAPERED | 1/4" CYLINDRICAL | 13 | 11 | 25 | 26
1CURV20O | 3/8" TAPERED | 3/8" CYLINDRICAL | 17 | 11.5 | 28 | 30
1CURV30O | 1/2" TAPERED | 1/2" CYLINDRICAL | 21 | 14 | 30 | 34
1CURV40O | 3/4" TAPERED | 3/4" CYLINDRICAL | 25 | 14.5 | 32 | 36.5
1CURV50O | 1" TAPERED | 1" CYLINDRICAL | 30 | 16.8 | 39 | 45

Characteristics / technical specifications

• Material: Nickel-plated brass body
• Angle: 90°
• Connection type: Tapered male / Cylindrical female
• Recommended application: Ensures vertical installation of breather plugs for lateral applications on gearboxes and tanks
• Available codes and dimensions:
  • 1CURV00O — D1: 1/8" TAPERED; D2: 1/8" CYLINDRICAL; CH: 10; L1: 7.5; L2: 18; L3: 21
  • 1CURV10O — D1: 1/4" TAPERED; D2: 1/4" CYLINDRICAL; CH: 13; L1: 11; L2: 25; L3: 26
  • 1CURV20O — D1: 3/8" TAPERED; D2: 3/8" CYLINDRICAL; CH: 17; L1: 11.5; L2: 28; L3: 30
  • 1CURV30O — D1: 1/2" TAPERED; D2: 1/2" CYLINDRICAL; CH: 21; L1: 14; L2: 30; L3: 34
  • 1CURV40O — D1: 3/4" TAPERED; D2: 3/4" CYLINDRICAL; CH: 25; L1: 14.5; L2: 32; L3: 36.5
  • 1CURV50O — D1: 1" TAPERED; D2: 1" CYLINDRICAL; CH: 30; L1: 16.8; L2: 39; L3: 45
