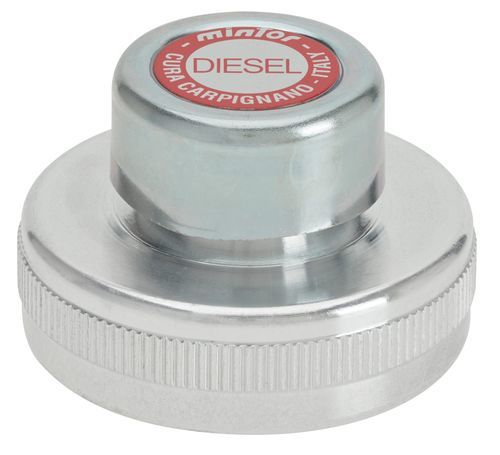

Breather plug TFES/ZVP

Product name
TFES/ZVP3

Description
Female threaded plug in aluminum alloy, untreated, designed for application on sleeves with male connection. Fitted with a galvanized steel cover and an internal breather valve calibrated at 0.15 ± 0.10 bar that opens intermittently to release internal pressures caused by fluid turbulence while preventing ingress of contaminants. Anodizing treatment available on request.

Operating orientation
The product is not designed to operate in an inverted position. Installation or testing in an inverted position is outside the design specifications and may impair correct operation.

Technical Info - GAS ISO 228
TYPE | f | d | h | l | D
TFES/ZVP3 | 2" | 38 | 21 | 41 | 65

Features / technical specifications

• Model: TFES/ZVP
• Variant: TFES/ZVP3
• Thread: internal (female)
• Body material: aluminum alloy, untreated
• Cover: galvanized steel
• Internal valve calibration: 0.15 ± 0.10 bar
• Function: periodic release of internal pressure caused by fluid turbulence and protection against ingress of foreign elements
• Surface treatment: anodizing available on request
• Not suitable for inverted operation
• Dimensions (Technical Info - GAS ISO 228): f = 2"; d = 38 mm; h = 21 mm; l = 41 mm; D = 65 mm
• Standard: GAS ISO 228
