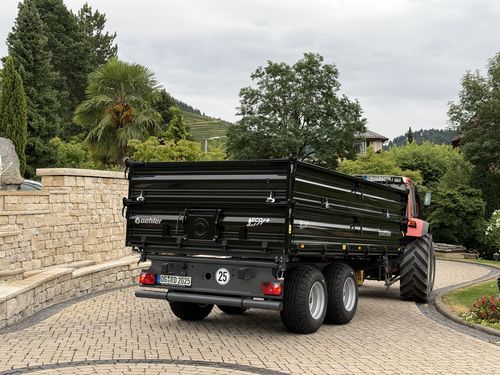

2-axle trailer OL TDK 90 ECO PLUS

agricultural9 tons

OL TDK 90 ECO PLUS - Tandem axle three-way tipper Permissible total weight: 9.0 t Inner platform dimensions: 4,500 x 2,240(2,180) x 500 mm Standard tires: 13.0x75 - 16 BKT AW702 Standard side wall: 500 mm Platform height approx.: 1,115 mm Max. axle load capacity: 7,000 kg Tilt cylinder stages: 4 Cylinder stroke length: 1,700 mm Cylinder stages Ø mm: 70-90-105-120 Max. operating pressure: 200 bar Required oil quantity: 14.6 l Brake: Flanged automatic overrun brake (FAD) Electrical system: 12 volt lighting system Other: Wheel chocks - Rectangular tubular frame - Flanged automatic overrun brake (FAD) - Separately pendulum-mounted steel side walls, with rubbing strips, tension ropes, grain slider - Conical bridge, central locking on 3 sides, bolted corner posts - 2-stage support leg - 12-volt lighting system, rear socket - ACC – dip primer + powder coating - 4-stage lifting cylinder, 1700 mm stroke, hard chrome-plated piston rod, gimbal mounting, automatic stroke limitation
