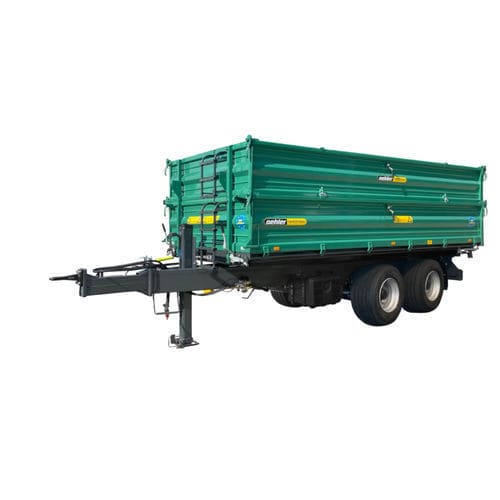

Tipping trailer OL TDK 160

2-axleagricultural16 ton

OL TDK 160 S - Tandem axle three-way tipper Permissible total weight: 16.0 t Standard tires: 385/65 R 22.5 MP-27 10GTS retreaded Unladen weight approx.: 3,300 kg Base side wall: 600 mm Platform height approx.: 1,390 mm Floor plate: 5 mm continuous, unwelded Max. axle load capacity: 18,000 kg Tipping cylinder stages: 5 Cylinder stroke length: 1,875 mm Cylinder stages Ø mm: 75-90-105-120-140 Max. operating pressure: 180 bar Required oil quantity: 18.6 l Brake: 2-circuit compressed air brake system Electrical system: 12 volt lighting system, rear socket Other: Wheel chocks - Torsion-resistant chassis made of sturdy rectangular tubular frame - Dual-circuit compressed air brake system - Separately swingable steel side walls, central locking on 3 sides, rubbing strip, grain slide, tension ropes - Conical bridge, bolted corner posts - BPW axle suitable for 25/40 km/h - Hydraulic double-acting support foot - 12-volt lighting system, rear power outlet - Complete vehicle (frame, platform, side walls) cleaned in 9 immersion baths, degreased and then coated inside and out with ACC and main paint baked at 180 degrees - Oversized tipping cylinder, 5-stage, 1875 mm stroke, cardan-mounted with hard chrome-plated piston rod and automatic stroke limitation
