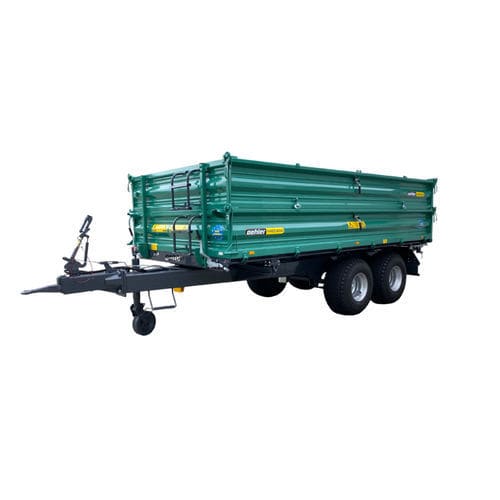

Tipping trailer OL TDK 80 S

tandem axleagricultural8 ton

OL TDK 80 S - Tandem axle three-way tipper Permissible total weight: 8.0 t Platform dimensions (internal): 4,500x2,240(2,180)x500 mm Standard tires: 13.0/75-16 BKT AW702 Unladen weight approx.: 2,480 kg Base side wall: 500 mm Platform height approx.: 1,115 mm Floor plate: 5 mm continuous, unwelded Max. axle load capacity: 11,000 kg Tipping cylinder stages: 4 Cylinder stroke length: 1,700 mm Cylinder stages Ø mm: 75-90-105-120 Max. operating pressure: 200 bar Required oil quantity: 14.6 l Brake: Flanged automatic overrun brake (BPW) Electrical system: 12-volt lighting system, rear power outlet Other: Wheel chocks - Torsion-resistant chassis made of sturdy rectangular tubular frame - Steel side walls (side walls and rear wall) separately pendulum-mounted, central locking on 3 sides, rubbing strip, grain slider, tension ropes - Conical bridge, bolted corner posts -B PW axle suitable for 25/40 km/h - Foldable support wheel - 12-volt lighting system, rear socket - Complete vehicle (frame, platform, side walls) cleaned in 9 immersion baths, degreased and then coated inside and out with ACC and main paint baked at 180 degrees - Oversized tipping cylinder, 4-stage, 1700 mm stroke, cardan-mounted with hard chrome-plated piston rod and automatic stroke limitation
