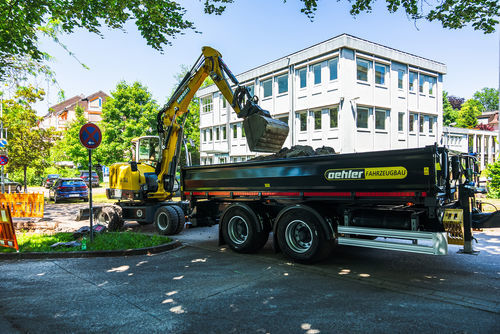

Tipping trailer OL TDK 180 NHR

2-axleagricultural18 ton

OL TDK 180 NHR (high-speed) - Tandem axle three-way tipper - Permissible total weight: 18 t Platform dimensions (internal): 5,035 x 2,360 (2,340) x 600 mm Standard tires: 435/50R19.5 10L ET0 Unladen weight approx.: 4,500 kg Overall length: 6,980 mm Overall width: 2,550 mm Platform height approx.: 1,135 mm Track width approx.: 2,050 mm Maximum axle load capacity: 27,000 kg Tilt cylinder stages: 5 Cylinder stroke length: 1,875 mm Cylinder stage diameter (mm): 75-90-105-120-140 Maximum lifting capacity: 27.7 t Maximum operating pressure: 180 bar Required oil quantity: 18.6 l Chassis: Rectangular tube frame Side walls: Base side wall 600 mm HARDOX 5 mm thick Brakes: 2-circuit compressed air brake system Axles: FAD: suitable for 25/40 km/h, 406x120, 130 mm square Support: Support foot Electrics: 12-volt lighting system, rear socket Paintwork: ACC dip primer and powder coating Tilting device: 5-stage lift cylinder, 1,875 mm stroke, hard chrome-plated piston rod, gimbal mounting, automatic stroke limitation Other: Wheel chocks Box dimensions inside: 5,035x2,360 (2,340) x 600 mm - Rectangular tubular frame - Dual-circuit compressed air brake system - Base side wall 600 mm HARDOX 5 mm thick - ADR axle suitable for 25/40 km/h, 406×120, 130 mm square - 12-volt lighting system, rear socket - ACC dip primer and powder coating - 5-stage lift cylinder, 1,875 mm stroke, hard chrome-plated piston rod, gimbal mounting, automatic lift limit - Wheel chocks - 8 lashing eyes on the base plate, 4 per side - Low design - Hydraulic gravel flap - Support cable winch - Lamp guard for lighting - Registration documents for 80 km/h - Mudguards (required for registration from 40 km/h) - Toolbox - Side wall lifting systems on left and right
