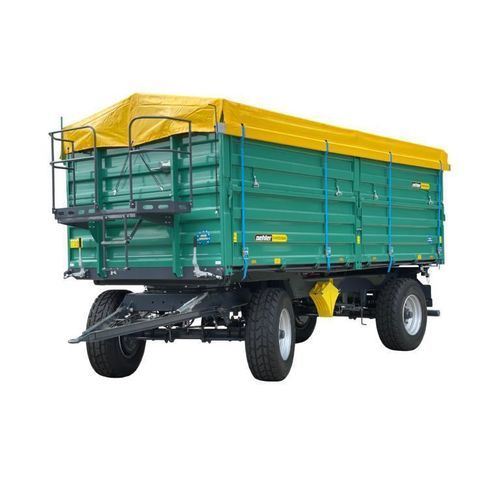

Dump trailer OL ZDK 180

2-axleagricultural18 ton

OL ZDK 180 - Two-axle three-way tipper Permissible total weight: 18.0 t Pallet dimensions: 5,240 x 2,420 x 800+800 mm - Tires: 385/65 R22.5 MP27 retreaded 10L ET0 - Unladen weight approx.: 4,300 kg - Base side wall: 800+800 mm (1600 mm) - Platform height approx.: 1,420 mm - Base plate: 5 mm continuous, unwelded - Maximum axle load capacity: 23,000 kg - Tilt cylinder stages: 5 - Cylinder stroke length: 1,875 mm - Cylinder stage diameter (mm): 75-90-105-120-140 - Maximum operating pressure: 180 bar - Required oil volume: 18.6 l - Brake: Dual-circuit compressed air brake system, 4-wheel braking - Electrical system: 12-volt lighting system, rear socket - Other: Wheel chocks - Torsion-resistant chassis made of sturdy closed C-frame - Dual-circuit compressed air brake system, 4-wheel braking - Reinforced steel side walls, individually suspended with central stanchions and rubbing strip, grain slide - Pallet-sized platform, central locking on 3 sides, bolted corner stanchions - Rubber seal in vertical area - BPW axle suitable for 25/40/60 km/h - ALB on both axles - 2nd oil and compressed air connection, routed to the rear with three-way valve for 2nd trailer - 12-volt lighting system, rear socket - Complete vehicle (frame, platform, side walls) cleaned in 9 immersion baths, degreased and then coated inside and out with ACC and baked at 180 degrees - Oversized tipping cylinder, 5-stage, 1875 mm stroke, cardanically mounted with hard chrome-plated piston rod and automatic stroke limitation
