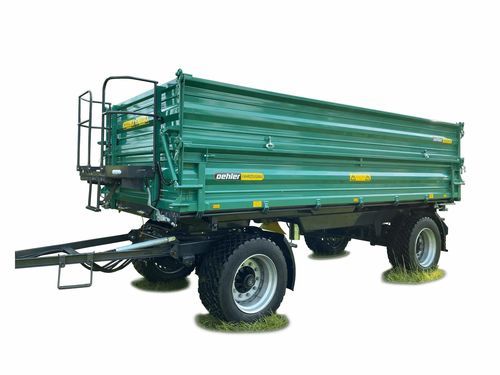

Dump trailer OL ZDK 180 UW

2-axleagriculturalgrain

OL ZDK 180 UW - Two-axle three-way tipper for viticulture Permissible total weight: 18.0 t Pallet dimensions (internal): 5,010 x 2,360(2,300) x 600+600 mm Tires: 455/40 R22.5 160J retreaded 10L ET0 Unladen weight approx.: 4,000 kg Base side wall: 600 mm Platform height approx.: 1,260 mm Floor plate: 5 mm continuous, unwelded Max. axle load: 20,000 kg Tilt cylinder stages: 5 Cylinder stroke: 1,875 mm Cylinder stage diameter: 75-90-105-120-140 mm Max. operating pressure: 180 bar Required oil volume: 18.6 l Brake: 2-circuit compressed air brake system, 4-wheel brake Electrics: 12-volt lighting system, rear socket Other: Wheel chocks - Torsion-resistant chassis made from sturdy closed C-frame - Dual-circuit compressed air brake system, 4-wheel brakes - Reinforced continuous steel side walls, individually swiveling, with rubbing strips and grain slides. The side walls are reinforced and are perfect for transporting grapes. - Conical bridge, centrally lockable on 3 sides, bolted corner posts - BPW axle suitable for 25/40 km/h - ALB on 1 front axle - 2nd oil and compressed air connection, routed to the rear with three-way valve for 2nd trailer - 12-volt lighting system, rear socket - Complete vehicle (frame, platform, side walls) cleaned in 9 immersion baths, degreased and then baked inside and outside with ACC and main paint at 180 degrees - Oversized tipping cylinder, 5-stage, 1850 mm stroke, cardanically mounted with hard chrome-plated piston rod and automatic stroke limitation
