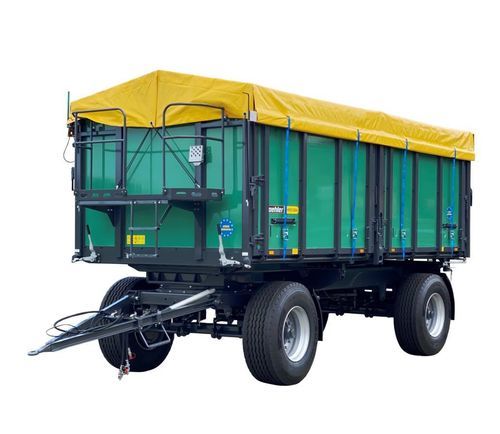

Dump trailer OL ZDK 180 P

2-axleagriculturalwith pneumatic braking

OL ZDK 180 P – Two-axle three-way tipper with portal doors Permissible total weight: 18.0 t Platform internal dimensions: 5,270 x 2,420 x 1,600 mm Tires: 385/65 R22.5 MP27 retreaded 10L ET0 Empty weight approx.: 4,000 kg Base side wall: 1600 mm plastic Platform height approx.: 1,420 mm Floor plate: 5 mm continuous, unwelded Maximum axle load capacity: 20,000 kg Tilt cylinder stages: 5 Cylinder stroke length: 1,875 mm Cylinder stage diameter (mm): 75-90-105-120-140 Max. operating pressure: 180 bar Required oil volume: 18.6 l Side walls: Reinforced plastic portal doors (left in direction of travel) with removable center post, grain slide, tension rods Brake: Dual-circuit compressed air brake system, 4-wheel braking Electrics: 12-volt lighting system, rear socket Other: Wheel chocks - Torsion-resistant chassis made of sturdy closed C-frame - Dual-circuit compressed air brake system, 4-wheel braking - Reinforced plastic portal doors (left in direction of travel) with removable center post, grain slide, tension rods, continuous side wall on the right in direction of travel - Pallet-sized platform, central locking on 3 sides, 12 pallets - Rubber seal in vertical and horizontal areas (platform) - BPW axle suitable for 25/40 km/h - ALB on both axles - 2nd oil and compressed air connection, relocated to the rear with three-way valve for 2nd trailer - 12-volt lighting system, rear socket - 2K paint finish - Oversized tipping cylinder, 5-stage, 1875 mm stroke, cardanically mounted with hard chrome-plated piston rod and automatic stroke limitation
