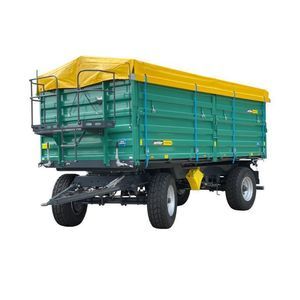

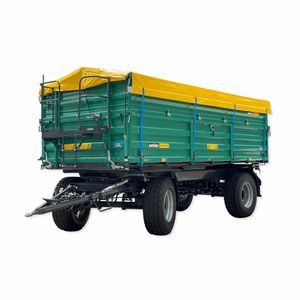

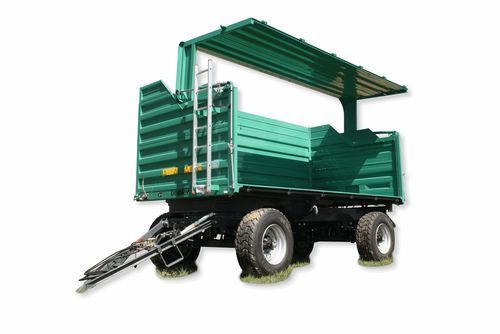

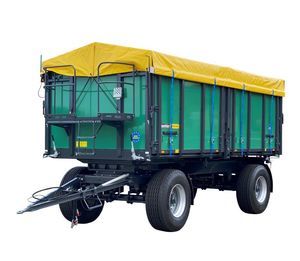

Dump trailer OL ZDK/HW 180

2-axleagriculturalwith pneumatic braking

OL ZDK 180 HW - Two-axle three-way tipper chipper trailer Permissible total weight: 18.0 t Pallet dimensions (inside): 5,000 x 2,420 x 800+800 mm Tires: 385/65 R22.5 MP27 retreaded 10L ET0 Unladen weight approx.: 4,600 kg Base side wall: 800+800 mm (1600 mm) Platform height approx.: 1,420 mm Floor plate: 5 mm continuous, unwelded Maximum axle load capacity: 20,000 kg Tilt cylinder stages: 5 Cylinder stroke length: 1,875 mm Cylinder stages Ø mm: 75-90-105-120-140 Max. operating pressure: 180 bar Required oil quantity: 18.6 l Brake: Dual-circuit compressed air brake system, 4-wheel braking Electrics: 12-volt lighting system, reverse socket Other: Wheel chocks - Low-twist chassis made from sturdy closed C-frame - Dual-circuit compressed air brake system, 4-wheel braking - Reinforced continuous steel side walls, left side (in direction of travel): hydraulic side wall, right side & rear separately swiveling, grain slide - Pallet-sized platform, central locking on 3 sides, bolted corner posts - Rubber seal in vertical area for hydraulic wall - BPW axle suitable for 25/40 km/h - ALB on both axles - 2nd oil and compressed air connection, relocated to the rear with three-way valve for 2nd trailer - 12-volt lighting system, rear socket - Complete vehicle (frame, platform, side walls) cleaned in 9 immersion baths, degreased and then coated inside and out with ACC and main paint baked at 180 degrees - Oversized tipping cylinder, 5-stage, 1875 mm stroke, cardanically mounted with hard chrome-plated piston rod and automatic stroke limitation
