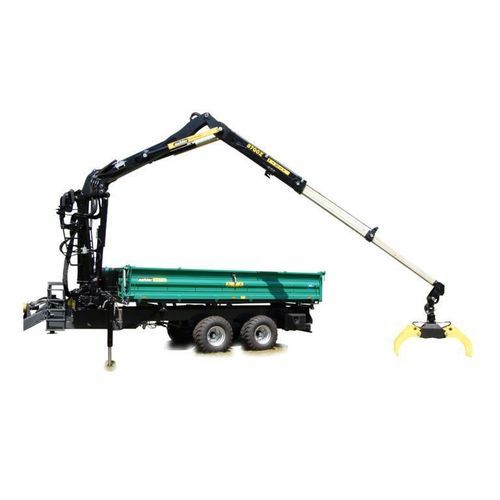

OL 8900 Z - Timber handling crane
Support: Hydraulic, laterally adjustable (vertical supports)
Weight: 1,700 kg
Control: 4-way control unit, combined
Swivel mechanism: 4 cylinders
Hydraulics: With separate oil supply
Lifting capacity: 750 kg at full reach
Grapple: HZP 150 timber grapple
Rotator: Infinitely rotatable (6,000 kg)
Maximum reach / incl. grapple: 8.90 m
Product details
- The booms are CNC-machined after welding to ensure that all connections are perfectly aligned.
- High-performance Strenx steel is used, which enables significant weight savings due to its structural strength. Thanks to the excellent strength-to-weight ratio, the cranes have a greater reach.
- The cast iron slewing gear offers significantly higher reliability, lower risk of leakage, and longer service life.
- The KTL dip primer applied before powder coating ensures that all surfaces and corners are protected against corrosion.
- Hardened shafts and high-performance bronze bushings are installed in the grab joints, guaranteeing greater reliability and a longer service life.
- The mathematically analyzed kinematics of the boom ensure maximum force in every position.
- The improved lifting angle of the main boom guarantees a wide range of applications.
