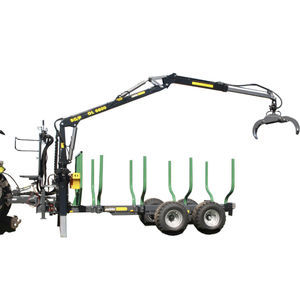

Trailer-mounted forestry crane OL 4850 SG/P

OL 4850 SG/P - Timber handling crane Max. operating pressure: 190 bar Support: A-supports Weight: 375 kg (without feet) Control: 7-way mechanical, cross lever control Max. reach: 4.60/5.10 m Swivel radius: 400° Swing mechanism: 2 cylinders Hydraulics: without own hydraulic supply Lifting capacity: 690 kg (at 4 m) Rotator: infinitely rotatable, 3 t, 30 kNm (without flange) Max. reach/including grab: 4.20/4.70 m - Robust crane support with oil bath slewing gear - Series with 3-point hitch for tractor construction - Stable timber grab with endless rotator - The booms are CNC machined after welding to ensure that all connections are perfectly aligned - Strenx high-performance steel is used, which enables significant weight savings due to its structural strength. Thanks to the excellent strength-to-weight ratio, the cranes have a greater reach - The cast iron slewing gearbox offers significantly higher reliability, a lower risk of leakage, and a longer service life - The KTL dip primer applied before powder coating ensures that all surfaces and corners are protected by a corrosion-resistant coating
