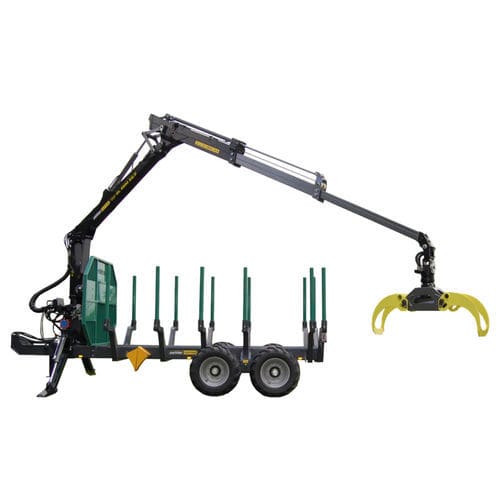

OL 7550 SG/P - Timber crane
The professional crane range
- Robust crane column with oil bath slewing gear
- Series with 3-point hitch for tractor construction
- Stable timber grapple with endless rotator
- The booms are CNC machined after welding to ensure that all connections are perfectly aligned
- Strenx high-performance steel is used, which enables significant weight savings due to its structural strength. The excellent strength-to-weight ratio gives the cranes a greater reach
- The cast iron slewing gear offers significantly higher reliability, a lower risk of leakage, and a longer service life
- The KTL dip primer applied before powder coating ensures that all surfaces and corners are protected by a corrosion-resistant coating
Technical data
- Support: folding supports
- Control: 6-way mechanical
- Swivel radius: 400°
- Swivel mechanism: 4 cylinders
- Hydraulics: without own hydraulic supply
- Lifting capacity: 1,350 kg (at 4 m)
- Clamp: HZ 145 timber clamp
- Rotator: infinitely rotatable, 5 t
- Max. reach/incl. clamp: 7.20/7.80 m
