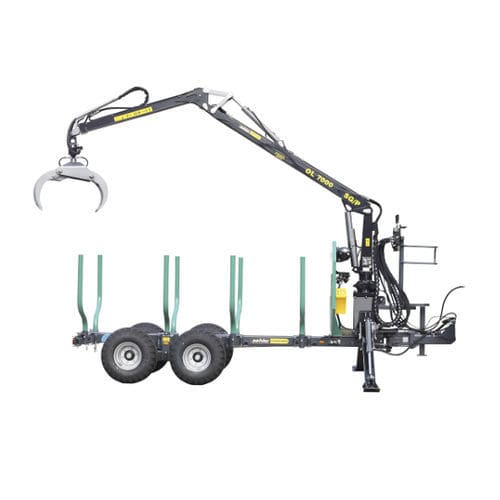

OL 7150 SG/P - Timber handling crane
Support: hydraulic folding supports
Weight: 690 kg (without feet)
Control: 6-way mechanical, 2-way electric, joystick control
Maximum reach: 6.90 / 7.40 m
Swivel radius: 400°
Swivel mechanism: 4 cylinders
Hydraulics: without own hydraulic supply
Lifting capacity: 1,000 kg (at 4 m)
Grapple: HZ 125 timber grapple
Rotator: infinitely rotatable, 3 t
Telescopic extension: 1.6 m
Maximum reach / incl. grapple: 6.80 / 7.40 m
- Robust crane support with oil bath slewing gear
- Series with 3-point hitch for tractor construction
- Stable wood grapple with endless rotator
- The booms are CNC machined after welding to ensure that all connections are perfectly aligned
- Strenx high-performance steel is used, which enables significant weight savings due to its structural strength. Thanks to the excellent strength-to-weight ratio, the cranes have a greater reach
- The cast iron slewing gearbox offers significantly higher reliability, a lower risk of leakage, and a longer service life
- The KTL dip primer, which is applied before powder coating, ensures that all surfaces and corners are given a corrosion protection layer
