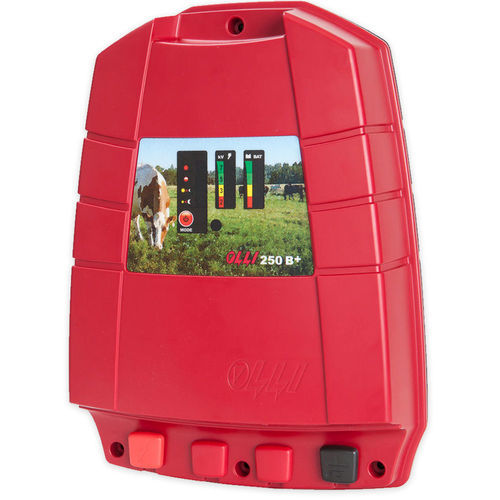

Battery-powered fence energizer 250B+

Overview
Olli 250B+ is a 12V battery energiser designed for fencing livestock and other animals. It delivers a maximum output energy of 2.0 J while maintaining low mains/battery consumption. The unit can be mounted on a wall or a post. A 20W solar panel is available as an accessory to enable off-grid operation.

Features

• Informative LED display
• Monitoring of fence condition
• Battery voltage indication
• Selectable battery deep discharge protection
• Four power saving modes:
• full power
• half power
• day mode (active during daylight)
• night mode (active during low light)

Battery and earthing tips

• Use leisure (deep-cycle) batteries as the energiser’s power source instead of vehicle starter batteries to improve battery life.
• Inadequate earthing is the most common cause of poor fence efficiency; correct and adequate earthing from the start helps avoid many issues.

Warranty and service
All Olli energisers come with a 3-year warranty that also covers lightning damage. Olli units manufactured in Finland are serviced by the plant's service outlet and by authorised Olli Service Partners. Spare parts are guaranteed to be available for many years, including discontinued models.

Product information
Maximum voltage: 7,400 V
Voltage at 500 Ohm load: 5,000 V
Stored energy: 2.6 J
Maximum output energy: 2.0 J
Power consumption: 70–200 mA
Indicative number of earthing rods: 1–2 pcs.
Maximum theoretical fence length: 90 km
Maximum theoretical fence length (light vegetation): 18 km
Maximum theoretical fence length (moderate vegetation): 6 km
Built-in lightning protection: Yes
Warranty, incl. lightning damage: 3 years
Olli product code: 6000250
EAN code: 6417160100190
Solar panel optional: Yes

Technical specifications

• Maximum voltage: 7,400 V
• Voltage at 500 Ohm load: 5,000 V
• Stored energy: 2.6 J
• Maximum output energy: 2.0 J
• Power consumption: 70–200 mA
• Indicative number of earthing rods: 1–2 pcs.
• Maximum theoretical fence length: 90 km
• Maximum theoretical fence length (light vegetation): 18 km
• Maximum theoretical fence length (moderate vegetation): 6 km
• Built-in lightning protection: Yes
• Warranty (incl. lightning damage): 3 years
• Olli product code: 6000250
• EAN code: 6417160100190
• Solar panel optional: Yes
