Battery-powered fence energizer SG3

temporaryfor horsesrechargeable

Product description

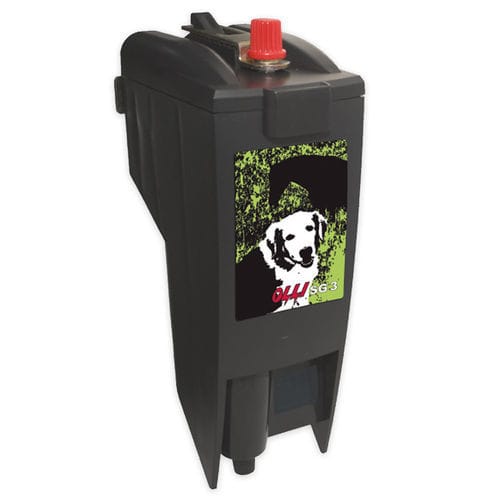

Olli SG3 is the smallest, lowest-powered energiser in the Olli range, intended for electrifying small animals and compact areas. Output energy is 0.125 J when powered by 4×1.5 V D (LR20) alkaline batteries and 0.3 J when using a 12 V rechargeable battery. The unit is compact (approx. the size of a milk carton), lightweight and portable. The energiser can be attached to an earthing rod sold separately.

Usage tips
Tip: Due to its low output, SG3 is not recommended as the primary energiser for permanent horse fencing; it can be used for temporary horse enclosures that comply with fencing standards during trekking. Inadequate earthing is the most common cause of poor fence performance—ensure correct and sufficient earthing from the start. Prefer leisure/deep-cycle batteries over vehicle starter batteries for more stable operation.

Product information
Maximum voltage: 4,800/6,800 V (batteries/rechargeable battery)
Voltage at 500 Ω load: 2,040/3,100 V (batteries/rechargeable battery)
Stored energy: 0.18/0.5 J (batteries/rechargeable battery)
Maximum output energy: 0.125/0.3 J (batteries/rechargeable battery)
Power consumption: 17–33/18–40 mA (batteries/rechargeable battery)
Recommended number of earthing rods: 1 pc.
Maximum theoretical fence length (ideal single-wire): 9/20 km (batteries/rechargeable battery)
Maximum theoretical fence length (light vegetation): 1/3 km (batteries/rechargeable battery)
Maximum theoretical fence length (moderate vegetation): 0.3/1 km (batteries/rechargeable battery)
Built-in lightning protection: No
Warranty (including lightning damage): 3 years
Olli product code: 6000003
EAN: 6417160120068

Technical specifications

• Model: Olli SG3
• Brand: Olli
• Maximum voltage (no-load): 4,800 V (batteries) / 6,800 V (rechargeable)
• Voltage at 500 Ω load: 2,040 V / 3,100 V
• Stored energy: 0.18 J / 0.5 J
• Maximum output energy: 0.125 J / 0.3 J
• Power consumption: 17–33 mA / 18–40 mA
• Recommended number of earthing rods: 1 pc.
• Maximum theoretical fence length (ideal single-wire): 9 km / 20 km
• Maximum theoretical fence length (light vegetation): 1 km / 3 km
• Maximum theoretical fence length (moderate vegetation): 0.3 km / 1 km
• Built-in lightning protection: No
• Warranty (including lightning damage): 3 years
• Olli product code: 6000003
• EAN: 6417160120068
