Battery-powered fence energizer 9.03B

Product overview

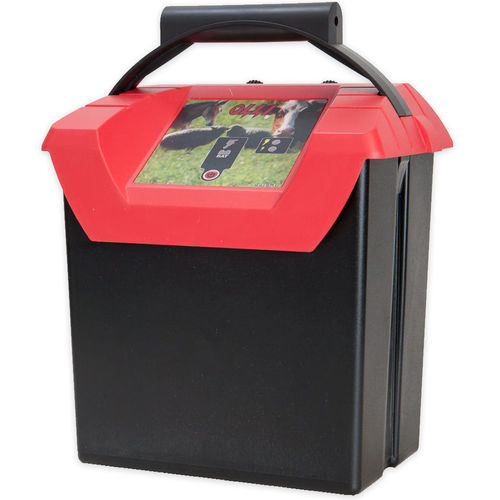

Olli 9.03B is a low-power compact energiser designed for occasional, short-term electric fencing in agricultural environments. Maximum output energy: 0.34 J. The unit provides high and low consumption modes and an automatic power-saving mode when battery voltage drops. Low-battery warning is given by an audible signal and an indicator lamp. Power source: 9V alkaline battery.

Accessories and tips
Earthing rod packages and an optional 6 W solar panel are available as accessories. Tip: inadequate earthing is the most common cause of poor fence performance. Correct and adequate installation of earthing from the start prevents many problems related to reduced fence efficiency.

Service and warranty
All Olli energisers come with a 3-year warranty that covers lightning damage. Units made in Finland are serviced by the plant service outlet and authorised Olli Service Partners throughout Finland. Spare parts availability is guaranteed for many years, including discontinued models.

Product information
Maximum voltage: 9,100 V
Voltage at 500 Ω load: 2,800 V
Stored energy: 0.43 J
Maximum output energy: 0.34 J
Power consumption: 17–33 mA
Recommended number of earthing rods: 1–2 pcs.
Maximum theoretical fence length: 23 km (single-wire, ideal conditions)
Maximum theoretical fence length (light vegetation): 3 km
Maximum theoretical fence length (moderate vegetation): 1 km
Built-in lightning protection: Yes
Warranty (including lightning damage): 3 years
Olli product code: 6000903B
EAN: 6417160100527

Technical specifications

• Model: Olli 9.03B
• Output energy (maximum): 0.34 J
• Stored energy: 0.43 J
• Maximum peak voltage (no-load): 9,100 V
• Voltage at 500 Ω load: 2,800 V
• Power consumption: 17–33 mA (high/low modes)
• Power source: 9V alkaline battery
• Operating modes: high and low consumption; automatic power saving when battery voltage drops
• Low battery warning: audible signal and indicator lamp
• Recommended earthing rods: 1–2 pcs.
• Maximum theoretical fence lengths: up to 23 km (single-wire, ideal conditions); 3 km (light vegetation); 1 km (moderate vegetation)
• Built-in lightning protection: Yes
• Warranty: 3 years (including lightning damage)
• Olli product code: 6000903B
• EAN: 6417160100527
