Drum screen L 3000

beltfinerotary

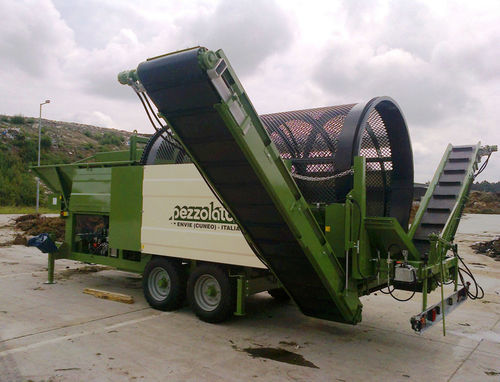

Rotary screen for compost L 3000 This professional machine is designed for granulometric screening of organic materials such as compost, soil, or wood chips, offering an excellent quality/price ratio. It is mounted on a robust welded steel frame. The drive is located at the front of the machine, with all hydraulic transmission components. In the central part are the two axles supporting the screening drum. The drum rotation is ensured by a chain welded onto the drum and a motor-reducer unit. The drum is made with a 5 mm thick sheet. The mesh of the screen is made according to need. Only one operator is required to change the drum. Further details: The large hopper is equipped with a metal feed belt or, for special requirements, a rubber belt. An adjustable brush is mounted longitudinally on the drum to keep the screening surface clean. In the standard version, fines and rejects are evacuated by conveyors that discharge the material at a height of 2.6 m. These machines are used for compost screening, separation of dry and wet waste, screening of wood chips, recovery of wood waste and shredded pallets. They can be used in various sectors, especially in fertilizer production, where they help ensure a high-quality final product. Pezzolato rotary screens, like the L 3000, are also used for screening wood chips to ensure calibration in automatic-feed boilers. In fact, they separate, in a single pass, the fine parts and oversized pieces to obtain a product of homogeneous granulometry. The L 3000 is available with three types of drive: by tractor PTO, by an autonomous engine (diesel), and by an electric motor. Rotary screens in stationary electric version can be installed on feet or on a concrete base. In this version, the screening system is reduced to the essentials, while ensuring productivity, reduced maintenance, and great ease of use. Key features: - Useful length of screening cylinder: 3000 mm - Diameter of screening cylinder: 1800 mm - Hopper size: 3000x1400x600 mm - Hourly production: 20 - 40 m³/h - Minimum tractor power: 40 hp - Minimum diesel engine power: 48 hp - Electric motor power: 15 kW Equipment: - Slide for roll-off unloading system - Tandem axle configuration Technical specifications (L 3000 MINI variant): - Minimum diesel engine power (for autonomous engine version): 10 HP - Minimum tractor power (for PTO version): 20 HP - Electric motor power (for electric version): 7.5 kW - Hopper size: 2300x1200x600 mm - Useful length of screening cylinder: 2600 mm - Diameter of screening cylinder: 1250 mm - Auger pitch: 700 mm - Height from ground to loading hopper: 2200 mm - Hourly output: 15 - 30 m³/h - Max discharge conveyor height above screen: 600 mm - Max discharge conveyor height below screen: 600 mm - Indicative overall dimensions: 5800x2200x2200 mm - Indicative machine weight: 2100 kg Videos: - L 3000 – Rotary screen for compost driven by a 51 hp LOMBARDINI autonomous engine - L 3000 – Rotary screen for compost driven by a 15 kW electric motor - L 3000 – Rotary screen for compost driven by a 51 hp autonomous engine
