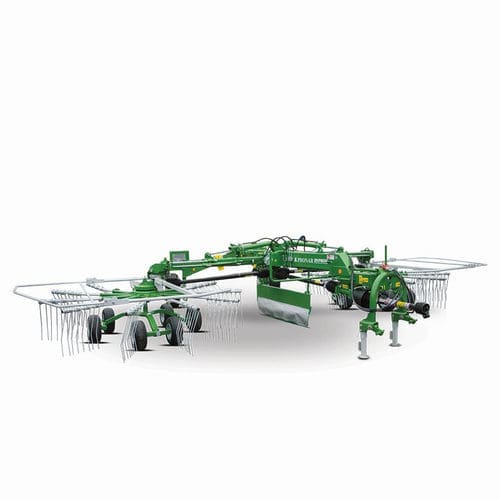

Rotary rake ZKP800

side deliverybi-rotor

Pronar ZKP 800 is a double rotor rotary rakes with hydraulic regulation of working width from 7 m 8 m and manual lock of required width. Swath width can be set from 0.9 to 1,9 m. Pronar ZKP 800 is eqiuipped with two rotors with eleven working arms. Each arm ends with four double raking fingers. . Using it is very simple, while ensuring the effectiveness. Turned linkage enables perfect steering of the rake. Lower links enable additional ground following behind the tractor. Rear Turing Wheel of the drwbar improve menoeuvrability. Tandem axle system of the rotors guarantees correct ground surface cracking and facilitates keeping the required driving route of the rake. Self aligning rotors enable longitudinal and Lateran ground surface cracking. The rake offers also manual adjustment of raking height and hydraulic synchronized raising and lowering rotors. Can be used for operations on tractors I and II cat. ZKP 800 power requirement amounts to 59 kW (80 HP), and it weights 1940 kg. The gearbox is lubricated with grease. 1-COMPATIBLE For operations on tractors I and II cat. 2-EFFICIENT Despite small size – efficiency for 7ha/h. 3-EASY TO USE Operator can easily set needed parameters. 4-COST-EFFECTIVENESS In the production process to use the most modern technologies and components.
