Towed fertilizer spreader

granulardouble-disc

Product Overview

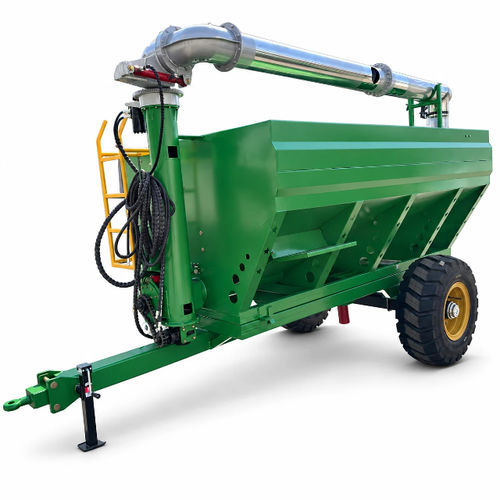

The 6 m³ Trailed Grain and Fertilizer Transfer Spreader is a multifunctional agricultural trailer built for efficient grain transport, material transfer and in-field fertilizer spreading. It combines a large-capacity hopper with a high-discharge auger and a rear dual-disc spreading unit to support large-scale field operations.

Key Features and Advantages

• Grain transport and transfer: 6 m³ hopper reduces handling cycles for granular crops during field logistics.
• High-discharge auger system: provides up to 5 m lift height for transfer to elevated receiving points.
• Wide rotation range: discharge tube rotates up to 180° left and 180° right for flexible positioning.
• Dual-disc fertilizer spreading: rear-mounted dual-disc unit enables controlled spreading with a working width of 6–10 m.
• Tractor compatibility: designed for tractors rated 60 HP or above.
• Multifunctional design: integrates transport, transfer and spreading functions in a single trailed implement.

Applications

• Large-scale arable fields and farms
• Grain transport between field and storage or receiving units
• Fertilizer transfer to spreaders or applicators
• Field fertilizer spreading over defined widths

Applicable Materials

• Rice
• Wheat
• Corn
• Rapeseed
• Granular fertilizer

Operation Instructions and Safety Notes

• Pre-operation inspection: verify tire pressure, brakes, lights, discharge tube coupling, hydraulic lift/rotation and conveyor for leaks, blockages or looseness.
• Loading safety: distribute load evenly in the hopper and do not exceed rated capacity to maintain towing stability.
• Discharge operation: ensure the area around discharge is clear of personnel and obstacles before operating lift and rotation functions to minimize spillage.
• Spreading operation: keep bystanders away, monitor material flow and stop immediately if blockage or abnormal flow occurs.
• Weather precautions: avoid high-elevation discharge in strong winds to reduce drift and loss of accuracy.

Maintenance Recommendations

• Remove residual grain or fertilizer from conveyors and discharge components after use to prevent corrosion and blockages.
• Check hydraulic oil condition and levels regularly; inspect hoses and fittings for leaks.
• Inspect and tighten bolts and fasteners periodically.
• Clean tires and chassis after operating on muddy surfaces.
• After wet or humid conditions, clean and dry the machine to reduce corrosion risk.

Technical Specifications

• Product Type: Trailed Grain and Fertilizer Transfer Spreader
• Power Requirement: 60 HP or above
• Overall Dimensions: 5216 × 2400 × 2820 mm
• Hopper Volume: 6 m³
• Maximum Load Capacity: 8000 kg
• Discharge Lifting Height: 5 m
• Discharge Rotation Range: 180° left / 180° right
• Grain Transfer Time: 3 minutes per load
• Track Width: 1840 mm
• Tire Specification: 16/70-20
• Number of Tires: 2
• Structure Type: Box body
• Fertilizer Spreading Method: Dual disc
• Fertilizer Spreading Width: 6–10 m
