Towed grain Cart

fertilizer

Product Overview

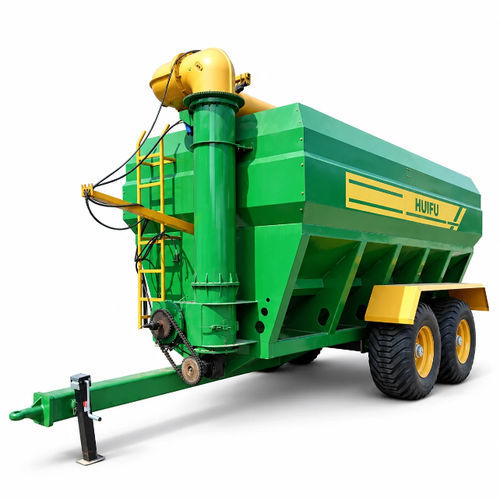

The 20 m³ tractor-towed grain and fertilizer transfer cart is designed for high-capacity grain transport, unloading and fertilizer transfer in large-scale agricultural operations. It features a 20 m³ hopper and a high-discharge auger with a 377 mm discharge tube. The auger raises hydraulically to 5.5 m and rotates 180° left and 180° right for controlled transfer into trucks, applicators or receiving equipment. No dedicated spreading mechanism or spreading width is provided as standard for this configuration.

Key Features and Advantages

• 20 m³ high-capacity hopper to minimize loading frequency.
• High-discharge auger system (377 mm tube) engineered for grain and fertilizer transfer with 5.5 m lift.
• Wide discharge positioning: 180° left and 180° right rotation.
• High load capacity: maximum specified load 20,000 kg.
• Four-wheel running gear equipped with 500/65-22.5 tires suitable for large-capacity trailers.
• Multi-purpose use: suitable for grain transport and fertilizer transfer between field equipment and receiving vehicles.

Overall Dimensions and Capacity
Overall dimensions: 6950 × 3045 × 3635 mm
Maximum load capacity: 20,000 kg
Hopper volume: 20 m³

Technical Specifications

• Power requirement: above 120 HP
• Overall dimensions: 6950 × 3045 × 3635 mm
• Hopper dimensions: 5040 × 2500 / R188.5 × 2185 mm
• Hopper volume: 20 m³
• Discharge auger diameter: 377 mm
• Discharge lifting height: 5.5 m
• Discharge rotation: 180° left / 180° right
• Grain transfer time: ~8 minutes per load
• Track width: 2050 mm
• Tire specification: 500/65-22.5
• Number of tires: 4

Applications

• Large agricultural fields
• Grain transport and transfer operations
• Fertilizer transfer operations
• Transfer between field equipment and receiving vehicles

Applicable Materials

• Rice
• Wheat
• Corn
• Rapeseed
• Fertilizer materials

Operation Instructions and Safety Notes
Pre-operation inspection
Check tire pressure, braking components, lighting, hydraulic connections, discharge auger fittings, lifting and rotation mechanisms, and the material conveying system before operation.
Loading safety
Distribute grain or fertilizer evenly in the hopper. Do not exceed the specified maximum load capacity. Uneven loading can affect trailer stability during transport.
High-discharge unloading safety
Ensure no people or obstacles are near the discharge area before unloading. Raise and rotate the discharge auger smoothly; avoid sudden movements that could cause vehicle instability or product spillage.
Material conveying safety
Monitor material flow during unloading. If blockage or abnormal operation occurs, stop the conveying system before inspecting or clearing the obstruction.
Weather precautions
Avoid high-discharge unloading in strong wind conditions where grain or fertilizer may drift and affect unloading accuracy or the surrounding area.

Maintenance Recommendations

• Clean residual grain and fertilizer from the hopper, auger and conveying system after use.
• Check hydraulic oil condition and level regularly.
• Inspect hydraulic hoses, joints and valves for leaks or damage.
• Check the discharge auger and conveying components for blockage, looseness or unusual wear.
• Inspect and tighten fasteners regularly.
• Clean tires and chassis after operation in muddy or wet conditions.
• Store the machine in a dry, ventilated area when not in use.

Technical Characteristics

• Model type: Tractor-towed grain & fertilizer transfer cart
• Hopper volume: 20 m³
• Maximum load capacity: 20,000 kg
• Discharge auger diameter: 377 mm
• Discharge lifting height: 5.5 m
• Discharge rotation: 180° left / 180° right
• Power requirement: above 120 HP
• Overall dimensions: 6950 × 3045 × 3635 mm
• Tires: 4 × 500/65-22.5
• Typical grain transfer time: ~8 minutes per load
