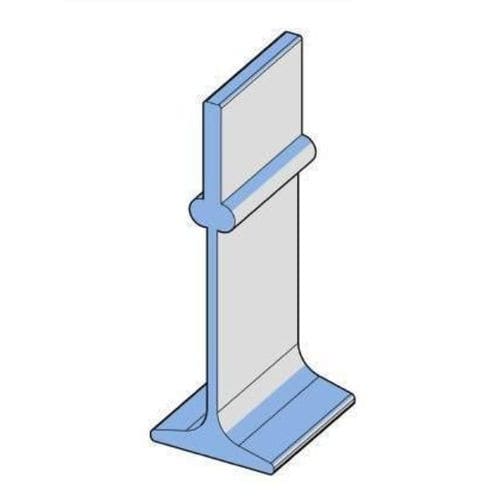

Floor beam for pig farm buildings PRF-PIG-0044-127-06-00

Product overview
The RABDION GFRP Standard Floor Beam is a pultruded structural profile engineered for swine farrowing, nursery, and finishing flooring sub-structures. Fully certified to EN 13706 Grade E23, it delivers high load-bearing capacity and minimal deflection across extended spans in both shallow and deep pit environments. Compatible with standard plastic slat panels and modular flooring systems, this profile provides total immunity to ammonia, manure acids, and washdown chemicals. Backed by 35+ years of proven field reliability across North America, Europe, and global markets, RABDION floor beams eliminate the rust, structural failure, and biosecurity risks of traditional steel or concrete supports.

Key features

• EN 13706 E23 performance rating
• Immunity to severe chemical and waste media (ammonia, manure acids, washdown agents)
• Improved biosecurity and surface hygiene
• Extended clear spans; suitable for shallow and deep pit installations
• Non-conductive thermal comfort and electrical isolation
• Universal compatibility with standard slat panels and modular systems

Profile geometry
PROPERTY | NOMINAL | TOLERANCE +/- | UNIT
Height | 127.00 | 0.635 | mm
Width | 44.00 | 0.220 | mm
Top Thickness | 6.35 | 0.350 | mm
Bottom | 3.75 | 0.200 | mm

Section properties
PROPERTY | VALUE | UNIT
Second Moment of Area Ix | 40149.22 | mm^4
Second Moment of Area Iy | 1781805.84 | mm^4
Section Area | 949.41 | mm^2

Load table
Span mm | Deflection mm | Recommended UDL kg/m | Max UDL kg/sqm at spacing of 400 mm | Max UDL kg/sqm at spacing of 600 mm | Max UDL kg/sqm at spacing of 800 mm
1500 | 10 | 750 | 4688 | 2083 | 1175
2000 | 13 | 310 | 1938 | 861 | 486
2400 | 16 | 186 | 1163 | 517 | 291
3000 | 20 | 94 | 588 | 261 | 147
3500 | 23 | 58 | 364 | 162 | 91

Technical specifications

• Commercial name: GFRP Standard Floor Beam
• Manufacturer / Brand: RABDION
• Product code (CN): PRF-PIG-0044-127-06-00
• Weight: 1887 gr/m
• Certification: EN 13706 Grade E23
• Standards compliance: EN 13706 E23, ASTM guidelines; RoHS-compliant resin matrix
• Application: Swine farrowing, nursery, and finishing flooring sub-structures
• Compatibility: Standard plastic slat panels and modular flooring systems
• Chemical resistance: Immune to ammonia, manure acids, and washdown chemicals
• Design benefits: High load-bearing capacity, minimal deflection, extended clear spans, shallow/deep pit versatility, non-conductive
• Proven field reliability: 35+ years across global markets
• Section geometry and properties: see Profile geometry and Section properties blocks above
