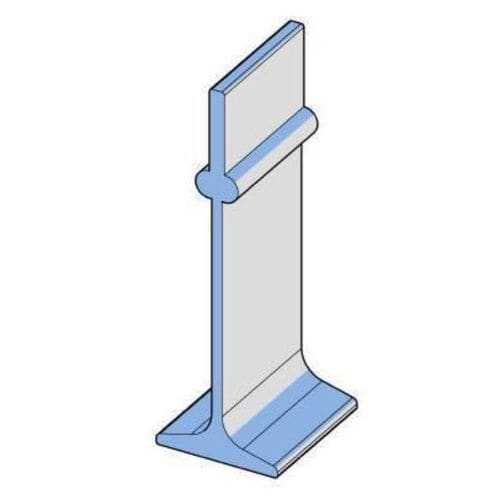

Floor beam for pig farm buildings PRF-PIG-0044-135-06-00

Product overview
The RABDION GFRP Standard Floor Beam is a pultruded structural profile engineered for swine farrowing, nursery, and finishing flooring sub-structures. Fully certified to EN 13706 Grade E23, it delivers high load-bearing capacity and minimal deflection across extended spans in both shallow and deep pit environments. Compatible with standard plastic slat panels and modular flooring systems, this profile provides total immunity to ammonia, manure acids, and washdown chemicals. Backed by 35+ years of proven field reliability across North America, Europe, and global markets, RABDION floor beams completely eliminate the rust, structural failure, and biosecurity risks of traditional steel or concrete supports.

Key features

• EN 13706 E23 performance rating.
• Immunity to severe chemical and waste media (ammonia, manure acids, washdown agents).
• Improved biosecurity and surface hygiene—non-porous, easy to wash.
• Extended clear spans with versatility for shallow and deep pit systems.
• Thermal comfort and electrical non-conductivity for animal welfare and safety.
• Universal compatibility with standard plastic slat panels and modular flooring systems.

Profile geometry
PROPERTY | NOMINAL | TOLERANCE +/- | UNIT
Height | 135.00 | 0.635 | mm
Width | 44.00 | 0.220 | mm
Top Thickness | 5.50 | 0.350 | mm
Bottom Thickness | 3.75 | 0.200 | mm

Profile properties
PROPERTY | VALUE | UNIT
Second Moment of Area Ix | 39519.70 | mm^4
Second Moment of Area Iy | 1992981.83 | mm^4
Section Area | 932.19 | mm^2

Load table
Span mm | Deflection mm | Recommended UDL kg/m | Max UDL kg/sqm at spacing of 400 mm | Max UDL kg/sqm at spacing of 600 mm | Max UDL kg/sqm at spacing of 800 mm
1500 | 10 | 840 | 5250 | 2333 | 1316
2000 | 13 | 346 | 2163 | 961 | 542
2400 | 16 | 206 | 1288 | 572 | 323
3000 | 20 | 106 | 663 | 295 | 166
3500 | 23 | 65 | 408 | 181 | 102

Technical specifications

• Commercial denomination: RABDION GFRP Standard Floor Beam
• Product code (CN): PRF-PIG-0044-135-06-00
• Weight: 1930 gr/m
• Certification: EN 13706 Grade E23
• Compatibility: standard plastic slat panels and modular flooring systems
• Chemical resistance: immune to ammonia, manure acids, and washdown chemicals
• Second Moment of Area Ix: 39519.70 mm^4
• Second Moment of Area Iy: 1992981.83 mm^4
• Section Area: 932.19 mm^2
• Geometry - Height: 135.00 mm (±0.635 mm)
• Geometry - Width: 44.00 mm (±0.220 mm)
• Geometry - Top Thickness: 5.50 mm (±0.350 mm)
• Geometry - Bottom Thickness: 3.75 mm (±0.200 mm)
• Load capacities (examples): Span 1500 mm Recommended UDL 840 kg/m; Max UDL at 400 mm spacing 5250 kg/sqm; Span 3500 mm Recommended UDL 65 kg/m; Max UDL at 800 mm spacing 102 kg/sqm
• Proven field reliability: 35+ years
