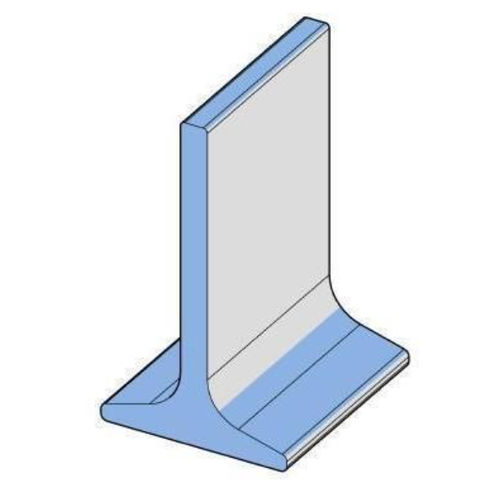

Floor beam for pig farm buildings PRF-PIG-0044-076-06-00

Product description
The RABDION GFRP Standard Floor Beam is a pultruded structural profile designed for swine farrowing, nursery and finishing house flooring sub-structures. Certified to EN 13706 Grade E23, it provides high load-bearing capacity with low deflection over extended spans in both shallow- and deep-pit installations. The non-metallic construction offers thermal comfort and electrical non-conductivity while eliminating corrosion risks associated with steel or concrete supports.

Key features

• EN 13706 E23 performance rating.
• Resistant to ammonia, manure acids and common washdown chemicals.
• Improved biosecurity and hygienic surface compared with metal or concrete supports.
• Suitable for extended clear spans in shallow and deep pit systems.
• Non-conductive material delivers thermal comfort benefits for livestock.
• Compatible with standard plastic slat panels and modular flooring systems.

Product identifiers & weight
Reference: PRF-PIG-0044-076-06-00
Weight: 1560 gr/m

Section geometry
PROPERTY - NOMINAL - TOLERANCE +/- - UNIT
Height - 76.20 - 0.381 - mm
Width - 44.00 - 0.220 - mm
Top Thickness - 6.35 - 0.350 - mm
Bottom - (not specified) - (not specified) - (not specified)

Section properties
PROPERTY - VALUE - UNIT
Second Moment of Area Ix - 39108.30 - mm^4
Second Moment of Area Iy - 433203.19 - mm^4
Section Area - 745.63 - mm^2

Load table (selected spans)
Span mm - Deflection mm - Recommended UDL kg/m - Max UDL kg/sqm at spacing of 400 mm - Max UDL kg/sqm at spacing of 600 mm - Max UDL kg/sqm at spacing of 800 mm
1500 - 10 - 181 - 1131 - 503 - ND
2000 - 13 - 75 - 466 - 207 - ND
2400 - 16 - 44 - 276 - 123 - ND
3000 - 20 - 23 - 141 - 63 - ND
3500 - 23 - 14 - 88 - 39 - ND

Certifications and standards
Manufactured in ISO 9001:2015 certified facilities. Produced to EN 13706 and ASTM guidelines. Resin matrices are RoHS-compliant. Technical resources available: STEP and TDS files for design reference.

Compatibility & application notes
Designed for integration with standard plastic slat panels and modular flooring systems used in swine farrowing, nursery and finishing houses. Provides a corrosion-free alternative to steel or concrete supports, improving washdown durability and reducing biosecurity risks.

Technical specifications

• Commercial name: RABDION GFRP Standard Floor Beam
• Reference / Code: PRF-PIG-0044-076-06-00
• Weight: 1560 gr/m
• Standards: EN 13706 Grade E23; ASTM guidelines; RoHS compliance
• Height: 76.20 mm (±0.381 mm)
• Width: 44.00 mm (±0.220 mm)
• Top thickness: 6.35 mm (±0.350 mm)
• Second moment of area Ix: 39108.30 mm^4
• Second moment of area Iy: 433203.19 mm^4
• Section area: 745.63 mm^2
• Example recommended UDL: up to 181 kg/m at 1500 mm span (see load table for other spans)
• Chemical resistance: immune to ammonia, manure acids and standard washdown chemicals
• Applications: swine farrowing, nursery and finishing flooring sub-structures; compatible with plastic slats and modular floors
• Proven field reliability: 35+ years across North America, Europe and global markets
• Safety: non-conductive; contributes to thermal comfort for livestock
