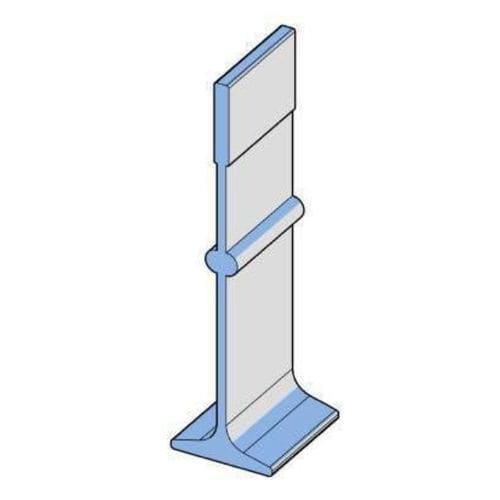

Floor beam for pig farm buildings PRF-PIG-0044-165-06-00

Product description
The RABDION GFRP Standard Floor Beam is a pultruded glass-fibre reinforced polymer structural profile designed specifically for swine farrowing, nursery and finishing flooring sub-structures. Engineered to provide high load capacity with minimal deflection across extended spans, it performs in both shallow and deep pit installations while eliminating corrosion and structural degradation associated with steel or concrete supports.

Key features

• EN 13706 E23 performance rating.
• Resistant to ammonia, manure acids and common washdown chemicals.
• Improved biosecurity and surface hygiene compared with steel or concrete.
• Enables extended clear spans; suitable for shallow and deep pit flooring systems.
• Thermally non-conductive for animal comfort and safety.
• Compatible with standard plastic slat panels and modular flooring systems.

Profile geometry
Height: 165.10 mm (Tolerance +/- 0.600 mm)
Width: 44.00 mm (Tolerance +/- 0.220 mm)
Top Thickness: 6.35 mm (Tolerance +/- 0.350 mm)
Bottom Thickness: 4.00 mm (Tolerance +/- 0.200 mm)

Section properties
Second Moment of Area Ix: 39491.89 mm^4
Second Moment of Area Iy: 3330496.54 mm^4
Section Area: 1097.02 mm^2

Load table (selected spans)
Span 1500 mm — Deflection 10 mm — Recommended UDL 190 kg/m — Max UDL (spacing 400 mm) 1186 kg/sqm — Max UDL (spacing 600 mm) ND — Max UDL (spacing 800 mm) ND
Span 2000 mm — Deflection 13 mm — Recommended UDL 153 kg/m — Max UDL (spacing 400 mm) 957 kg/sqm — Max UDL (spacing 600 mm) ND — Max UDL (spacing 800 mm) ND
Span 2400 mm — Deflection 16 mm — Recommended UDL 98 kg/m — Max UDL (spacing 400 mm) 613 kg/sqm — Max UDL (spacing 600 mm) ND — Max UDL (spacing 800 mm) ND
Span 3000 mm — Deflection 20 mm — Recommended UDL 52 kg/m — Max UDL (spacing 400 mm) 326 kg/sqm — Max UDL (spacing 600 mm) ND — Max UDL (spacing 800 mm) ND

Certifications & compliance
EN 13706 Grade E23; ISO 9001:2015 certified manufacturing; EN 13706 E23 / ASTM compliant; RoHS-compliant resin matrices.

Technical specifications

• Brand: RABDION
• Model / Commercial name: RABDION GFRP Standard Floor Beam
• Product code: PRF-PIG-0044-165-06-00
• Material: Pultruded GFRP (glass-fibre reinforced polymer)
• Application: Structural floor beam for swine farrowing, nursery and finishing flooring sub-structures
• Weight: 2380 gr/m
• Height: 165.10 mm
• Width: 44.00 mm
• Top thickness: 6.35 mm
• Bottom thickness: 4.00 mm
• Second moments of area: Ix 39491.89 mm^4, Iy 3330496.54 mm^4
• Section area: 1097.02 mm^2
• Recommended UDL values and maximum UDL by span available in load table
• Chemical resistance: immunity to ammonia, manure acids and washdown chemicals
• Compatibility: fits standard plastic slat panels and modular flooring systems
• Proven field reliability: 35+ years across multiple markets
