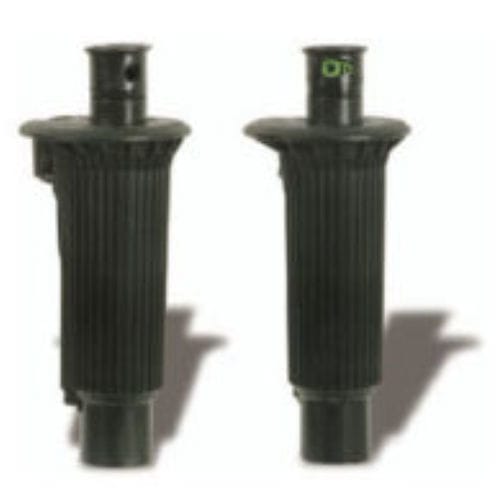

Rotating sprinkler EAGLE ™

Rain Bird rotors Eagle series ideal for sport areas. Applications • EAGLE ™ turbine sprinklers have been specifically designed to withstand even harsh conditions such as sports field irrigation systems Features • Closed casing models to better protect the internal mechanism from debris • Water-lubricated turbine mechanism • The peculiar washing action keeps the suspended substances away from the internal components • Maintenance can be carried out from above • Sturdy return spring for the return of the turret • Full circle and variable sector models (up to 345°) • Built-in solenoid valve • Pressure regulator adjustable from above - factory pre-set at 5,5 bar • 950 models have 4 cascade nozzles (18 to 24) for optimum uniformity and 4 standard nozzles (26 to 32) • “TSRS ™”: (Rock Screen ™ filter) reachable from above which allows you to remove installation debris or deposits due to deposits over time Specifications • Operating pressure: 4,1 ÷ 6,9 bar • Radius for EAGLE™ 900: 19,2 ÷ 29,6 m • Radius for EAGLE™ 950: 21,3 ÷ 28 m • Trajectory of the mouthpiece: 25° • Maximum height of the jet: 6,1 m • Female threaded connection: 1”½ ACME • The Sprinkler that offers durable performance Electrical Specifications • Solenoid: 24 Vca - 50 Hz • Absorption at starting: 0,41 A (9,9 VA) • Absorption in steady state: 0,30 A (7,2 VA)
