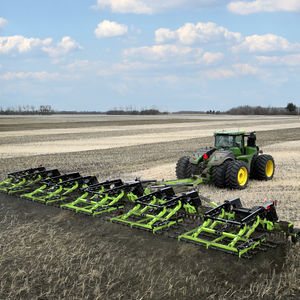

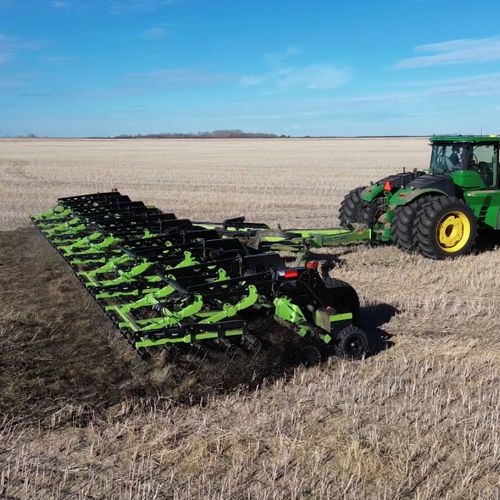

Towed disc harrow THX-600

5-sectionwith hydraulic adjustmentdepth control

Overview
The THX-360 (36 ft) and THX-600 (60 ft) are single-row disc-and-harrow tillage units designed for post-harvest residue management and pre-seeding seedbed preparation. A row of concave discs sizes straw and mixes chaff into the soil, followed by a five-bar heavy harrow that chops, spreads and levels residue for improved soil warming, moisture infiltration and uniform seedbed conditions.

How it works
The 20" 10° concave discs on 8.5" spacing cut and size straw while incorporating chaff into the topsoil. The following five-bar heavy harrow breaks and evens residue discharged from the discs, providing consistent surface distribution and leveling ahead of seeding operations.

Key features

• Single row of 20" 10° concave discs on 8.5" spacing
• Five-bar heavy harrow (5/8" x 26" tines) to spread, level and break up residue
• Discs mounted on four-bolt service-free hubs with rubber torsion shanks for longevity and ground-following
• Single-point depth control for discs via adjustable slide-mounted rear depth control
• Harrow tine coils enlarged toward outer tines to reduce stress during operation
• Hydraulic wing-lock for tension links with lock pin to prevent inadvertent opening
• Main frame built from 12" x 12" x 3/8" tubing for necessary rigidity and ballast

Harrow pressure options
The harrow downforce is configurable to match residue and field conditions:

• Spring adjustment: two tension springs to increase or decrease down pressure (down pressure only)
• Manual hydraulic: cylinders on harrow arms provide up or down pressure, adjusted via valve at hitch
• Electronic hydraulic: cylinders with cab-mounted monitor for in-cab up/down pressure adjustment

Durability and serviceability
Robust components include cast wing knuckles with 2.5" pins and greasable spring-steel bushings. Discs use four-bolt service-free hubs; rubber torsion shanks are designed for long life and consistent ground following to reduce maintenance downtime.

Specifications

• Working Width: THX-360 36 ft / THX-600 60 ft
• Transport Width: 15.25 ft
• Transport Height: 15 ft
• Transport Length: THX-360 33.5 ft / THX-600 45 ft
• Weight: THX-360 25,000 lbs / THX-600 34,000 lbs
• Disc/Harrow Sections: THX-360 3 / THX-600 5
• Section Width: 12 ft
• Disc Size: 20" concave, 2.25" width, 8.5" spacing, 10° angle
• Harrow: 5-bar layout, 5/8" x 26" tines with tip, angle adjustable 35–90°
• Tires: 560/45 22.5 radials
• Hubs: 8-bolt, 10,000 lb rating
• Main Boom Tubing: 12" x 12" x 3/8"
• Hydraulic Outlets: 4
• Safety Lighting: SMV standard
• Required Horsepower: 7–9 hp per foot of working width
