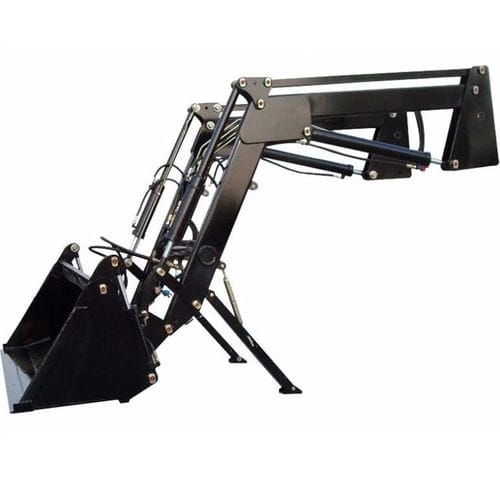

Front loader TZ series

In agricultural production, workers need a variety of agricultural machinery. For example, forklifts need to be used for shovel materials. Trailers need to be used when transporting materials. Features: 1. Simple structure, easy operation, cheap price. 2. There are various models. Adapting to large, medium and small tractors. 3. For fast-moving design between the bucket and the lifting arm, the bucket can be easily removed. Our factory provides various types of buckets for you to choose from to meet different production needs. Dimension 4100x1600x 1580 mm 4400x1600x1880mm 4900x1739x2494 mm 5010x1800x 2594mm 5350x1800x 3000mm Max. Dump Height 2525 mm 2850 mm 3500 mm 3650 mm 3800 mm Dump Distance 900 mm 900 mm 1180 mm 1180 mm 1200mm Bucket Rollback Angle 420 420 420 420 420 Unloading Angle 470 470 470 470 470 Scraping Depth 100 mm 150 mm 160 mm 160 mm 160 mm Lifting Time 7s 7s 8s 8s 10 s Descending Time 3.5s 3.5s 4s 4s 10 s Bucket Width 1300mm 1400mm 1800 mm 2000mm 2200mm Bucket Volume 0.20m³ 0.27m³ 0.43m³ 0.60m³ 0.65m³
