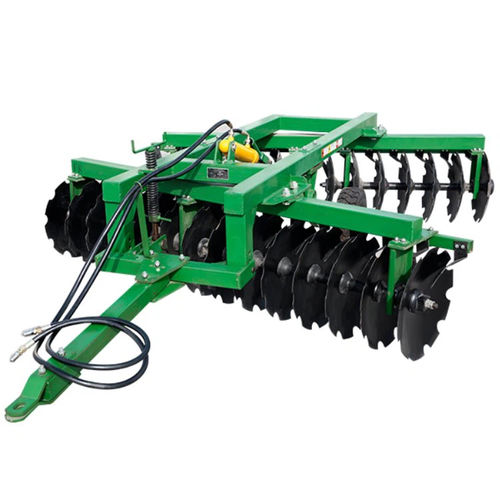

Mounted disc harrow 1BZ series

offset

1BZ series hydraulic offset heavy harrow has high working efficiency, strong soil entry capacity, loose soil after harrowing, strong adaptability to heavy sticky soil, wasteland and land with many weeds. Features: 1. Heavy weight, strong ability to bury the ground. 2. Simple structure, good rigidity, and equipped with hydraulic lifting and transporting rubber wheels, easy to carry and small turning radius. 3. Harrow wide, suitable for big farmland work. Working Width(mm） 2200 2500 3000 3400 3800 4200 Working Depth(mm) 200-250 Diameter of Disc 660mm / 26inch Thickness of Disc (mm) 5 No. Of Disc(pcs) 20 24 28 32 36 40 Weight (kg) 1350 1500 1600 1800 2100 2300 Matched Power (hp) 80-90 90-100 100-110 110-120 130-140 150-160 Linkage Hydraulic trailed with tractor 1BZ series hydraulic offset heavy harrow has high working efficiency, strong soil entry capacity, loose soil after harrowing, strong adaptability to heavy sticky soil, wasteland and land with many weeds. The rake adopts an integral rake frame with welded square tube as the main body, simple structure, good rigidity, and is equipped with hydraulic lifting and falling transport rubber wheels, which is convenient to transfer and has a small turning radius, which greatly improves the production efficiency and service life of the rake.
