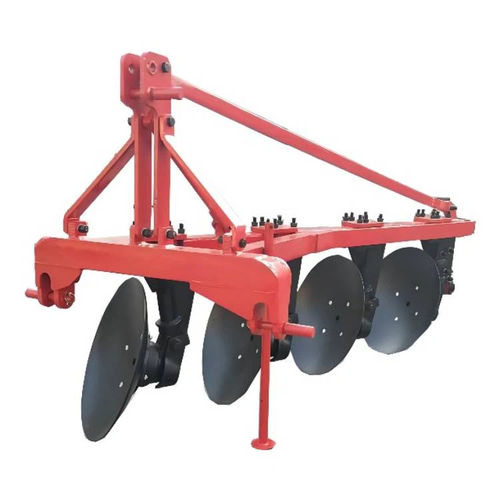

Disc plough 1LY series

mounted

The one-way disc plough is suitable for ploughing up the cultivated land as well as virgin land, especially for the green manure flied with stubble of rice or wheat. Features: 1. Simple structure and easy assembly. 2. Inexpensive and versatile. 3. Multi-purpose models for you to choose, to meet the use of different areas of farms. Working Width 600 mm 800mm 660mm 880mm 1000 mm 1250 mm Working Depth 180-200 mm 200-220 mm 250-300 mm No. of Disc 3 4 3 4 4 5 Dia. of Disc 510 mm 560 mm 660 mm Weight 180 kgs 200 kgs 210 kgs 260 kgs 470 kgs 530 kgs Linkage Type Ι three point mounted Type II three point mounted Working Width 750 mm 1000 mm 1250 mm Working Depth 250-300 mm No. of Disc 3 4 5 Dia. of Disc 660 mm Weight 460 kgs 550 kgs 650 kgs Linkage Type II Three point mounted The one-way disc plough is suitable for ploughing up the cultivated land as well as virgin land, especially for the green manure flied with stubble of rice or wheat. with the good performance of till aging into the soil, it can satisfy the agricultural request. Moreover, the plough has the merits of less working resistance and easy to operate and adjust, etc.
