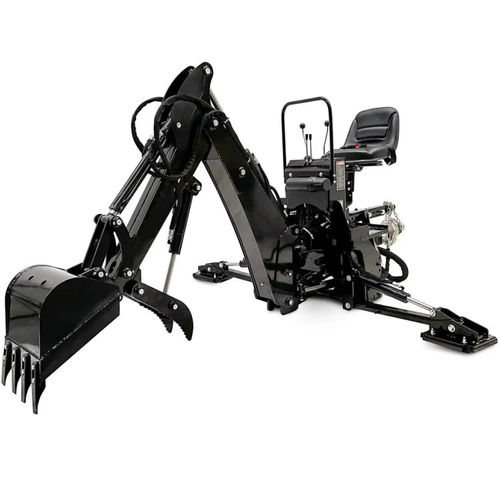

Tractor backhoe LW series

hydraulic

The hydraulic oil pump is connected to the PTO. The power source comes from the rear power output shaft of the tractor. The structure is simple and the maintenance is convenient. Features: 1. Use three point suspension to connect with the tractor. Move flexible. 2. The hydraulic oil pump is connected to the PTO. The power source comes from the rear power output shaft of the tractor. The structure is simple and the maintenance is convenient. 3. Price is cheap. It is the perfect alternative of a small excavator. Dig Depth 1850 mm 2150 mm 2640 mm 2900 mm 3000 mm 3500 mm Dig Height 2500 mm 3400 mm 3510 mm 3900 mm 4000 mm 4300 mm Load Height 1400 mm 1760 mm 2000 mm 2362 mm 2637 mm 3000 mm Unload Height 1733 mm 1878 mm 1952 mm 2413 mm 2540 mm 2770 mm Dig Bucket Force 1300 kg 1400 kg 1600 kg 1900 kg 2600 kg 2700 kg Dig Bucket Rotation Angle 160° 160° 160° 150° 150° 172° Swing Angle 140° 140° 140° 160° 160° 180° Operate Hydraulic Power Pressure 16 Mpa 16 Mpa 16 Mpa 16 Mpa 16 Mpa 16 Mpa Bucket Width 300 mm 400 mm 450 mm 480 mm 500 mm 550 mm Bucket Volume 0.03 m³ 0.036 m³ 0.048 m³ 0.054 m³ 0.06 m³ 0.07 m³ Shandong Sadin Heavy Industry Co.,Ltd is a tractor manufacturer. In order to meet the diverse purchasing needs of buyers, we also manufacture various types of agricultural machinery. For example: front end loader, backhoe, mower, rotary tiller, grass cutter, seeder, harvester. We provide a one -stop purchase uniform service. If you are interested in our items, please leave message to us. Your feedback will be highly appreciated.
