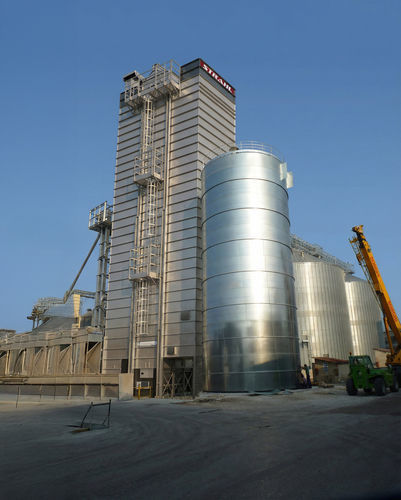

Grain dryer FAV series

cerealfixedcontinuous

Product overview
The FAV Series is a continuous-flow grain dryer engineered for high-throughput cereal drying in a single pass. Wet grain is loaded at the top, descends through the drying column and is crossed by heated air to progressively remove moisture. A dedicated cooling section at the base conditions the grain for immediate long-term storage.

Why choose the FAV Series

• Ease of operation: Intuitive control interface for quick start-up and simplified daily operation.
• Space-efficient throughput: High processing capacity in a compact footprint, suitable for farms and collection centers with limited area.
• Continuous single-pass drying: Stable, linear process delivering uniform moisture reduction on large volumes.

Core components

• Loading hopper: Special internal geometry for controlled, uniform feeding into the drying column.
• Fans: Installed opposite the burner and operating in suction mode to ensure even airflow; fitted with silencer and damper to limit noise and dust emissions.
• Catwalks: External and internal access walkways for safe inspection and routine maintenance.
• Profiled air ducts: Designed to optimize grain flow and heat exchange between hot air and product.
• Heat generator: Inline burner configurable for natural gas and LPG; diesel option available — ensures accurate modulation and uniform air temperature.
• Extraction device: Oscillating shutters for even, controlled discharge of grain.
• Base frame: Anchored structural foundation certified for extreme wind, snow and seismic loads.

Drying process

• Air intake: Ambient air is drawn in and heated to supply the drying column.
• Hot air circulation: Heated air flows through the grain bed, extracting internal moisture.
• Exhaust: Moisture-laden exhaust air is expelled to maintain drying efficiency.
• Product cooling: Dried grain is cooled by ambient air in the lower section before extraction and storage.

Complementary technologies

• VAP System: STRAHL technology for additional dust-emission reduction.
• Moisture control system: Continuous monitoring of product moisture for precise process control.
• Extraction speed regulator: Optional inverter to adjust discharge speed.
• Supplementary temperature monitoring: Additional probes available for finer control across dryer sections.

Control systems
STRAHL control systems provide real-time monitoring, alarms and supervisory functions to optimize the drying cycle, protect grain quality and improve operational efficiency.

Technical specifications

• Type: Continuous-flow grain dryer, single-pass with integrated cooling section.
• Feeding: Top-loaded hopper with optimized internal geometry.
• Air movement: Fans in suction mode with silencer and damper to reduce noise and dust emissions.
• Heat source: Inline burner for natural gas and LPG; diesel option available; precise modulation for uniform air temperature.
• Extraction: Oscillating-shutter discharge with optional inverter for speed control.
• Access & maintenance: Internal and external catwalks for safe inspections and routine maintenance.
• Air handling: Profiled ducts designed to enhance grain flow and heat exchange.
• Structure: Ground-anchored base certified for wind, snow and seismic conditions.
• Emissions reduction: Optional VAP System to lower dust emissions.
• Monitoring: Moisture control and supplementary temperature probes available.
• Controls: STRAHL control systems for real-time data, alerts and process optimization.
