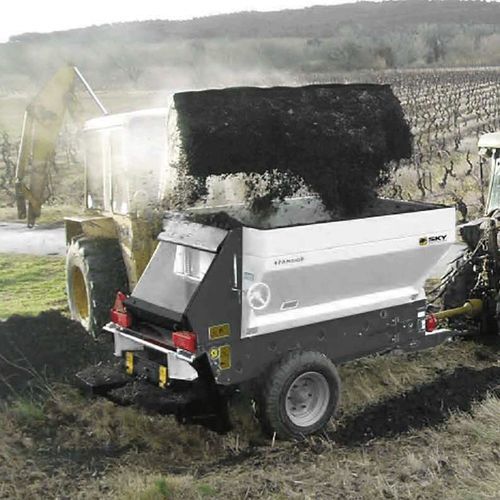

Towed fertilizer spreader S25

drygranularorganic

Overview
Trailed fertilizer spreader designed for organic fertilizers, powders and granules. Offers up to 2.5 t payload while respecting the special vineyard-arbo gauge (1.40 m overall). Regular distribution ensured by Ø550 mm double plates.

Maximum hourly productivity

• Suitable for organic fertilizers, powders and granules
• Consistent spreading by Ø550 mm double plates
• Up to 2.5 t payload within 1.40 m vineyard gauge (allows 1.80 m row spacing without a straddle planter)

S25 features

• Reliable dosages per hectare even on slopes
• SKY-exclusive universal flow calibration scale
• Extra-large infeed conveyor
• Optimised hopper slopes for steady flow
• DPA device as used on crop bulk spreaders

High performance

• Spreading width: 1–12 m (depending on product and dose/ha)
• Mechanical DPA rate: 100–10,500 l/ha over 6 m (product dependent)
• Hydraulic DPA (optional) rate: 100–21,330 l/ha over 6 m (product dependent)
• SREA-approved as a transport vehicle

Basic equipment

• Adjustable drawbar (height and length) with fixed ring
• Special transmission with torque limiter 540 rpm
• Manual parking brake
• Retractable jockey wheel (Ø 250 x 85 mm)
• Hydraulically operated DPA clutch (1 SE)
• Tyres 10.0/75 x 15 (Ø 760 mm x width 264 mm)
• Double plate Ø 550 mm with mechanical drive
• Adjustable locators for two rows or row spacing
• Adjustable flaps and deflectors to reduce spreading width
• Flow calibration scale
• Ramp lighting and signage

Main options

• Hydraulic DPM kit in addition to mechanical DPA (1 SE with free return)
• Hydraulic plate drive (1 SE with free return)
• Hydraulic brake control
• Rear protective cover
• Rear chain locks
• 500-litre hopper extension (H = 200 mm)
• 12.5/80 x 18 tyres (Ø 965 x 323 mm)
• 33% reduction guillotine trap for small dosages (40–200 L over 12 m)

Technical specifications

• Model: S25
• Type: Trailed fertilizer spreader
• Maximum payload: up to 2.5 t
• Overall gauge (special vineyard-arbo): 1.40 m
• Compatible row spacing: 1.80 m (without straddle planter)
• Double plate diameter: Ø 550 mm
• Spreading width: 1–12 m (depending on product and dose)
• Mechanical DPA spreading rate: 100–10,500 l/ha over 6 m (product dependent)
• Hydraulic DPA (optional) spreading rate: 100–21,330 l/ha over 6 m (product dependent)
• Standard tyres: 10.0/75 x 15 (Ø 760 mm x width 264 mm)
• Optional tyres: 12.5/80 x 18 (Ø 965 x 323 mm)
• Optional hopper extension: +500 L (H = 200 mm)
• Guillotine trap option: 33% reduction for small dosages (40–200 L over 12 m)
• Drive: special transmission with torque limiter (540 rpm)
• Braking/controls: manual parking brake; optional hydraulic brake control
• Ancillary: adjustable drawbar, retractable jockey wheel (Ø 250 x 85 mm), flow calibration scale, adjustable locators, flaps and deflectors, ramp lighting and signage
• Certification: SREA-approved as a transport vehicle
