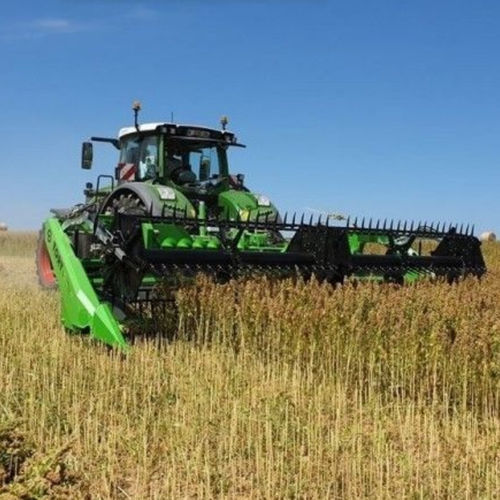

Tractor-mounted windrower SWATHER

self-propelled

DESCRIPTION
The swather cutter we manufacture can be mounted on the front or rear of a tractor, on a forage harvester, combine or on various self-propelled machines. It is suitable for a wide range of crops and applications such as rapid drying of cut material and reducing grain loss when cutting green crops.

FEATURES
Two discharge outlets 1.40 m x 1.30 m — the largest on the market. Two windrows for faster drying with the option to install movable belts to select the material discharge side automatically from the cab, or an optional third belt to evacuate all material to one side. Large-diameter orbital reel with SCH plastic fingers. Option to fit 3 rapeseed knives. Folding transport support. Belts 1,050 mm long with inclination adjustment in 6 positions. Two lateral support wheels for ground contour following. Hydraulic cutter suspension adjustable via accumulator. Adjustable belt speed and direction of rotation. Multi-connector hydraulic plug. Complete SCH cutting system with hydraulic drive.

OPTIONS

• 3 folding rapeseed knives.
• 3rd extra belt kit (to produce a single windrow).
• Cab-controlled reversal of belt direction.
• Kit to drive the reel with pump at the cutter.
• Hydraulic power unit.
• Double SCH gearbox for demanding crops.
• Upper aid auger to help evacuate tall or bulky crops.
• Automatic coupling frame.
• Available in 4.5 m, 4.80 m, 6.55 m and 7.50 m.

SPECIFICATIONS TABLE
Working length | Weight | Discharge openings | Belt width | Reel diameter | Knife gearbox
4.5 m | 1,250 kg | 1–2 openings | 1 m | 1,150 mm | SCH hydraulic
4.80 m | 1,300 kg | 1–2 openings | 1 m | 1,150 mm | SCH hydraulic
6.55 m | 2,300 kg | 1–2 openings | 1 m | 1,150 mm | SCH hydraulic
7.50 m | 2,400 kg | 1–2 openings | 1 m | 1,150 mm | SCH hydraulic

FEATURES / TECHNICAL SPECIFICATIONS

• 4.5 m — Weight: 1,250 kg; Discharge openings: 1–2; Belt width: 1 m; Reel diameter: 1,150 mm; Knife gearbox: SCH hydraulic.
• 4.80 m — Weight: 1,300 kg; Discharge openings: 1–2; Belt width: 1 m; Reel diameter: 1,150 mm; Knife gearbox: SCH hydraulic.
• 6.55 m — Weight: 2,300 kg; Discharge openings: 1–2; Belt width: 1 m; Reel diameter: 1,150 mm; Knife gearbox: SCH hydraulic.
• 7.50 m — Weight: 2,400 kg; Discharge openings: 1–2; Belt width: 1 m; Reel diameter: 1,150 mm; Knife gearbox: SCH hydraulic.
