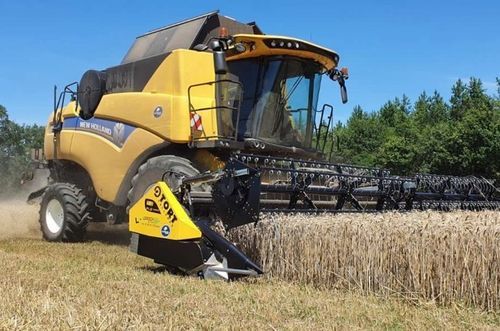

Grain harvesting header

foldingaugerfor combine harvesters

DESCRIPTION
Folding cereal header with adjustable 'VARIO' platform. Enables higher harvesting speed in tall, bulky crops while minimising grain loss. Automatic drive coupling without leaving the cab. Operation via the combine's original controls.

FEATURES

• Platform extends automatically by up to +40 cm without stopping harvesting or leaving the cab.
• Ensures maximum intake capacity in fields with crops of varying heights.
• Optional lateral oilseed (rapeseed) knives can be installed without removal when folding the header.
• SCH easycut cutting system with independent drive on each side, avoiding the joining of the knife bar.
• Large-diameter auger (630 mm) with retractable fingers along the full length of the auger.
• Automatic drive coupling, operable from the cab without dismounting.

SPECIFICATIONS (table)
Working width | Feet | Overall width | Folded width | Weight
6.00 M | 20 | 6.47 M | 3.46 M | 2,344 KG
6.60 M | 22 | 7.05 M | 3.79 M | 2,580 KG
7.20 M | 24 | 7.70 M | 4.09 M | 2,720 KG

Technical specifications

• 'VARIO' adjustable platform with automatic extension up to +40 cm.
• Control system operated via the combine's original controls.
• Folding system for transport and manoeuvring without removing optional side knives.
• SCH easycut cutting system with independent lateral drives.
• Large-diameter auger: 630 mm with retractable fingers along the full length.
• Automatic drive and coupling, operable from the cab.
• Available working widths: 6.00 m; 6.60 m; 7.20 m.
• Corresponding feet: 20, 22, 24.
• Overall and folded widths per model and weights as shown in the table.
