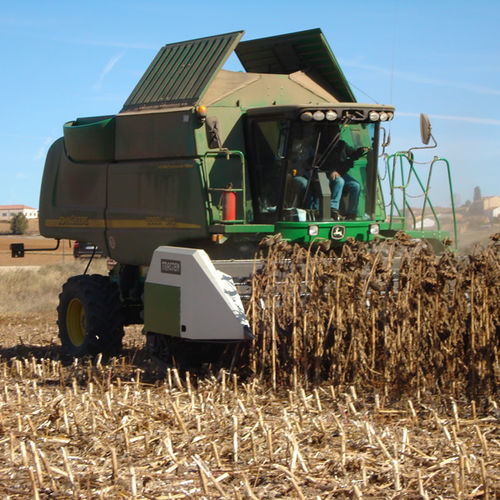

Sunflower harvesting header 450G

with hydraulic adjustment

Description
The tray-type sunflower header minimizes grain losses while providing higher harvesting speed compared with other sunflower collection systems. It is compatible with standard combines and can be equipped with a hydraulically height-adjustable stalk chopper to manage residue.

Features

• Hydraulically height-adjustable stalk chopper.
• Reel with height adjustment.
• Simple and reliable transmission.
• Optional hydraulic motor to drive the reel and regulate speed.
• Reinforced chopper transmission.
• Complete SCH cutting system.
• Stalk press to prevent wheel damage (optional).
• Adjustable adapter mounting frame.

Model table
Model | Length | No. dividers | Weight with chopper
TORT-450G | 4.50 m | 7 | 1750 kg
TORT-520G | 5.21 m | 8 | 1900 kg
TORT-590G | 5.90 m | 9 | 2150 kg
TORT-660G | 6.60 m | 10 | 2400 kg
TORT-725G | 7.25 m | 11 | 2650 kg
TORT-795G | 7.95 m | 12 | 2850 kg
TORT-935G | 9.35 m | 14 | 3100 kg
TORT-1070G | 10.70 m | 16 | 4150 kg

Technical specifications

• TORT-450G — Length: 4.50 m; No. dividers: 7; Weight with chopper: 1750 kg.
• TORT-520G — Length: 5.21 m; No. dividers: 8; Weight with chopper: 1900 kg.
• TORT-590G — Length: 5.90 m; No. dividers: 9; Weight with chopper: 2150 kg.
• TORT-660G — Length: 6.60 m; No. dividers: 10; Weight with chopper: 2400 kg.
• TORT-725G — Length: 7.25 m; No. dividers: 11; Weight with chopper: 2650 kg.
• TORT-795G — Length: 7.95 m; No. dividers: 12; Weight with chopper: 2850 kg.
• TORT-935G — Length: 9.35 m; No. dividers: 14; Weight with chopper: 3100 kg.
• TORT-1070G — Length: 10.70 m; No. dividers: 16; Weight with chopper: 4150 kg.
