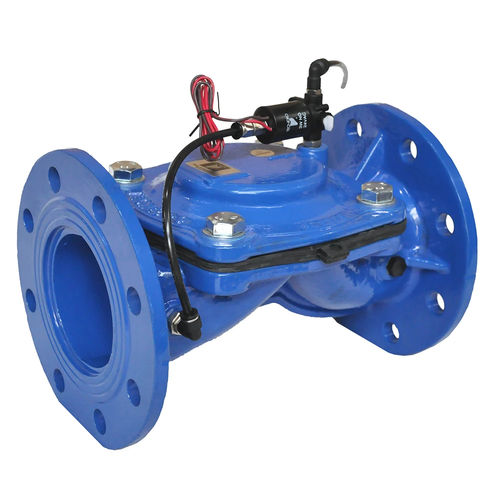

Irrigation solenoid valve IM-EL

3-way

The IM-EL electrohydraulic valve is designed for automatic hydraulic flow management, allowing opening and closing via a 3-way bistable solenoid valve. It is ideal for applications requiring precise fluid control, such as irrigation systems or industrial plants. Technical Specifications: Valve Type: 3-way – 2 threads – Normally Open (N.O.) Body Material: Brass Connections: Ø1/8” F BSP for the inlet Ø1/8” M BSP for the outlet Nominal Pressure: 10 bar Operating Voltage: 24V AC, 50-60 Hz Protection Rating: IP65 Accessories: 3-Way Solenoid EL: Type: 3-way – 2 wires – Normally Closed (N.C.) Body: Nylon Connections: Ø1/8” F BSP Nominal Pressure: 10 bar Voltage: 24V AC 50÷60 Hz Protection Rating: IP66 3-Way Bistable Solenoid EL-BI: Type: 3-way – 2 wires – Bistable Body: Nylon Connections: Ø1/8” F BSP Nominal Pressure: 10 bar Voltage: 9-12V DC Protection Rating: IP66 3-Way Bistable Solenoid EL-BA: Type: 3-way – 2 wires – Bistable Body: Reinforced Nylon Connections: Ø1/8” F BSP Nominal Pressure: 10 bar Voltage: 6-24V DC Protection Rating: IP66 3-Way Bistable Solenoid EL-OT: Type: 3-way – 2 threads – Normally Open (N.O.) Body: Brass Connections: Ø1/8” F BSP (side coil) Ø1/8” M BSP Nominal Pressure: 10 bar Voltage: 24V AC 50÷60 Hz Protection Rating: IP65 3-Way Bistable Solenoid EL-16: Type: 3-way – 2 threads – Normally Open (N.O.) Body: Brass Connections: Ø1/8” F BSP (side coil) Ø1/8” M BSP Nominal Pressure: 16 bar Voltage: 24V AC 50÷60 Hz Protection Rating: IP65
