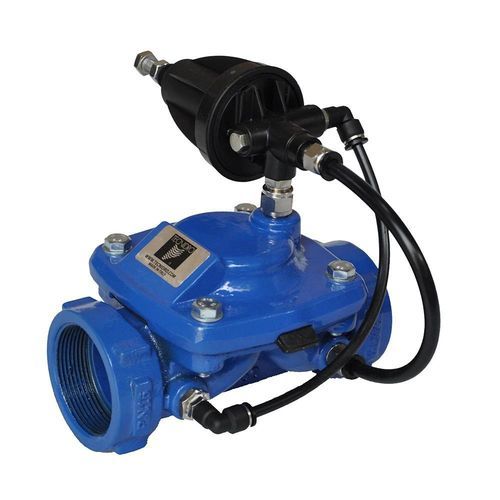

Safety release valve IM-SR/IM-SRP2

irrigationhydraulic2-way

The IM-SR/IM-SRP2 quick relief valve is an automatic safety valve designed to rapidly discharge overpressure from a pressurized system to protect installations from pressure overloads. It is suited for hydraulic networks that require a fast response to sudden pressure rises.

Operating principle:

• Actuated by a two-way quick relief pilot (models SR or SR-P).
• The valve remains closed at normal upstream pressure.
• When upstream pressure exceeds the setpoint, the pilot opens the valve rapidly to discharge the overpressure.
• After discharge, the main valve closes slowly to minimize water hammer and ensure system stability.

Typical applications:

• Protection of hydraulic installations and pressurized networks against pressure overloads.
• Systems requiring rapid safety intervention.

Documentation:

• Technical Data Sheet (PDF) available; file size indicated on the product page: 1.65 MB.

Technical characteristics / specifications:

• Product type: Automatic quick relief / safety valve
• Model designation: IM-SR / IM-SRP2
• Pilot: Two-way quick relief pilot (models SR or SR-P)
• Function: Rapid discharge of overpressure when upstream pressure exceeds set value
• Closing behavior: Delayed/slow closing after discharge to avoid water hammer and ensure system stability
• Intended applications: Hydraulic networks and installations requiring fast pressure-relief response
• Availability indicated on the product page: In stock
