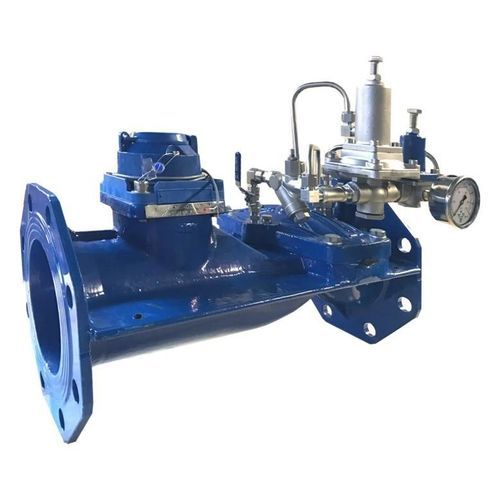

Irrigation hydrometer ISDE1 series

The Hydroval ISDE1 double-flanged water meter is engineered with an innovative profile to minimize pressure drop (elliptical diaphragm) and to simplify water distribution for irrigation systems. The model is protected by a European Patent. Key components such as the diaphragm and the motorized ball valve ensure a longer operating life compared with classic hydrometers.

Documentation

• Technical Data Sheet — 1.37 MB (PDF)

Key features

• Elliptical diaphragm shape to minimize pressure drop
• Protected by a European Patent
• Main components: diaphragm and motorized ball valve
• Designed for extended service life versus classic hydrometers
• Product category: Hydrometers / Hydrocounters for irrigation

Model and fittings
Counter model: TW-P Tangenziale

• Magnetic transmission
• Dry register with 7 rollers

Technical specifications

• Body: GG25 (EN-GJL-250) or GGG40 (EN-GJS-400)
• Cover: GG25 (EN-GJL-250) or GGG40 (EN-GJS-400)
• Diaphragm: reinforced NR60 Sh
• Counter: TW-P Tangenziale with magnetic transmission
• Register: dry with 7 rollers
• Protection: European Patent on design
