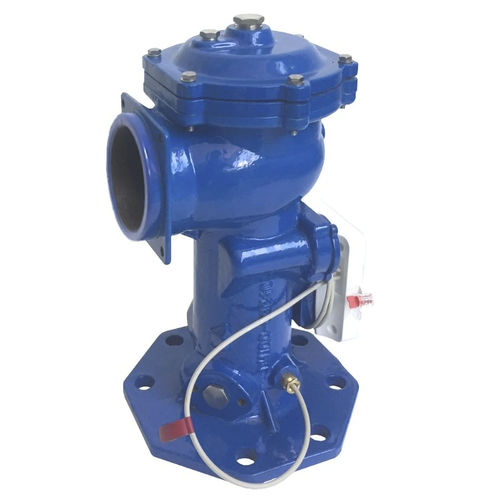

Cast iron body irrigation hydrometer U2C series

Product overview
The Hydroval U2C Ultrasonic double chamber hydrometer (IDROMEMBRANA® line) is a diaphragm automatic hydraulic water meter designed for agricultural irrigation and gardening. It integrates an ultrasonic flow meter with pulse output for instantaneous flow and total volume measurement, and operates at low pressures with reduced maintenance requirements.

Key advantages

• Simplified installation in irrigation networks
• Reduced maintenance due to non-intrusive ultrasonic measurement
• Long service life in open-field conditions
• Balanced cost-to-performance ratio suitable for agricultural systems

Operating principle

• Opening, closing and main flow regulation are driven by the water pressure available in the pipeline (no external energy required)
• Automatic control and regulation are performed via hydraulic control circuits acting on the main flow
• The valve modulates flow using an elastic, watertight diaphragm that adapts to the valve seat to ensure tightness

Design and durability
The diaphragm geometry and the high hydrodynamic profile of the cast iron body allow greater water passage and reduced pressure losses compared with other valve typologies. The diaphragm closure provides a free passage section that does not obstruct solids in the flow. Internal and external surfaces are protected by a special epoxy polyester coating against corrosion. Basic valve bodies can be equipped with multiple control options to meet irrigation system requirements.

Technical specifications

• Product: Hydroval U2C — Ultrasonic double chamber hydrometer
• Product line: IDROMEMBRANA®
• Valve type / technical denomination: Diaphragm Automatic Hydraulic
• Body material: cast iron (GGG40 / EN-GJS-400)
• Cover and shutter material: GGG40 (EN-GJS-400)
• Operating shaft: AISI 304
• Diaphragm: NR 60 Sh reinforced (other compounds on request)
• Seals: Vulkolan (other compounds on request)
• Maximum admissible pressure: 16 bar
• Built-in anti-tampering limiter
• Ultrasonic meter model: UWM Ultrasonic
  • Range ratio R80
  • Resolution 0.01 m3
  • Pulse output every 0.001 – 1 m3
  • 8-digit electronic display
• Control options: remote hydraulic control; electrical solenoid control; pressure reduction; pressure sustaining; pressure relief; combinations of the above
• Intended applications: agricultural irrigation and gardening
• Documentation available: Technical Data Sheet (PDF)
• Standards: compliant with ISO 16399:2014
