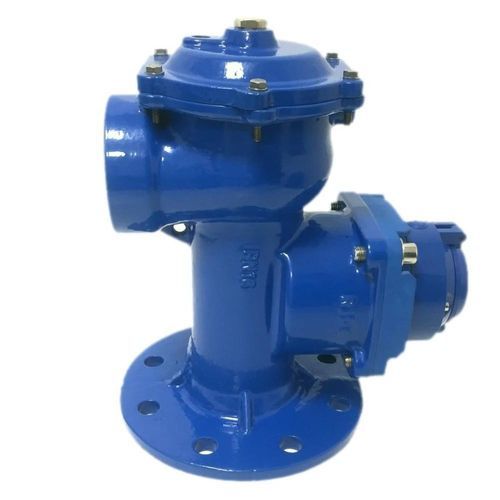

Irrigation hydrometer I2C series

Description
The I2C double-chamber water meter features a valve design derived from industrial valves, enabling accurate metering at very low operating pressures from 0.2 Bar. An internal metallic plunger provides extended service life while keeping pressure loss to a minimum.

Key features

• Double-chamber valve configuration for reliable low-pressure operation
• Minimum operating pressure: 0.2 Bar
• Internal metallic plunger for long lifecycle and low pressure loss
• Magnetic transmission with dry dial (7 digits)
• Integrated anti-damage and anti-tampering flow limiter

Technical specifications

• Body: GGG40 (EN-GJS-400)
• Bonnet: GGG40 (EN-GJS-400)
• Plunger: GGG40 (EN-GJS-400) — internal metallic plunger
• Stem: AISI 304
• Diaphragm: Nylon reinforced NR 60 Sh
• Seal: Vulkolan
• Watermeter model: TW-P Series Tangential
• Watermeter features: Magnetic transmission; Dry dial with 7 digits
• Operating minimum pressure: 0.2 Bar

Applications and benefits

• Designed for low-pressure distribution networks and industrial water metering
• Reduced pressure loss and longer maintenance intervals thanks to metallic plunger
• Tamper-resistant features for secure installation in public and private networks
• Modular construction facilitates replacement and service
