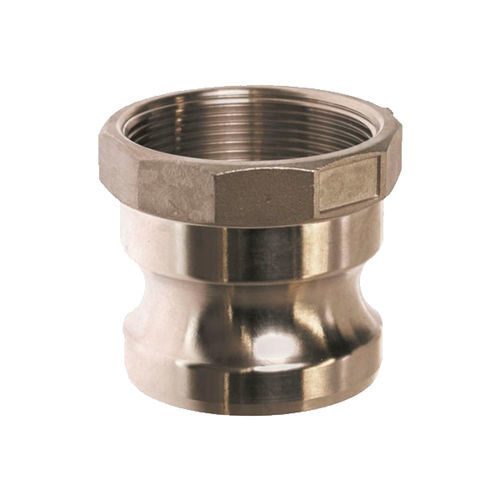

Camlock coupling A

threadedfemale

Product name
Fixed camlock with female thread – type A

Aluminium
Item | Code | Int. Ø (in.)
C746500 | 4650 | ½”
C746510 | 4651 | ¾”
C746520 | 4652 | 1”
C746532 | 4653 | 1¼”
C746540 | 4654 | 1½”
C746550 | 4655 | 2”
C746560 | 4656 | 2½”
C746570 | 4657 | 3”
C746580 | 4658 | 4”
C746590 | 4659 | 5”
C746600 | 4660 | 6”
C749225 | 4661 | 8”

Brass
Item | Code | Int. Ø (in.)
C746501 | 4650/1 | ½”
C746511 | 4651/1 | ¾”
C746521 | 4652/1 | 1”
C746531 | 4653/1 | 1¼”
C746541 | 4654/1 | 1½”
C746551 | 4655/1 | 2”
C746561 | 4656/1 | 2½”
C746571 | 4657/1 | 3”
C746581 | 4658/1 | 4”
– | 4659/1 | 5”
– | 4660/1 | 6”

Stainless Steel
Item | Code | Int. Ø (in.)
C746502 | 4650/2 | ½”
C746512 | 4651/2 | ¾”
C746522 | 4652/2 | 1”
C746530 | 4653/2 | 1¼”
C746542 | 4654/2 | 1½”
C746552 | 4655/2 | 2”
C746562 | 4656/2 | 2½”
C746572 | 4657/2 | 3”
C746582 | 4658/2 | 4”
C746592 | 4659/2 | 5”
C746602 | 4660/2 | 6”

Polypropylene
Item | Code | Int. Ø (in.)
C746503 | 4650/3 | ½”
C749772 | 4897/3 | ½”-¾”
C746513 | 4651/3 | ¾”
C746523 | 4652/3 | 1”
C746533 | 4653/3 | 1¼”
C746536 | 4898/3 | 1¼”-1½”
C746543 | 4654/3 | 1½”
C746553 | 4655/3 | 2”
C746573 | 4657/3 | 3”
C746583 | 4658/3 | 4”

Characteristics / Technical specifications

• Product type: Fixed camlock coupling with female thread (Type A)
• Brand: TIPSA
• Available materials: Aluminium, Brass, Stainless Steel, Polypropylene
• Available internal diameters (inches): ½”, ¾”, 1”, 1¼”, 1½”, 2”, 2½”, 3”, 4”, 5”, 6”, 8” (varies by material)
• Item codes: See material tables above (examples: C746500, C746501, C746502, C746503, etc.)
• Category: Couplings → Camlock
