Camlock coupling D

threadedfemale

Product

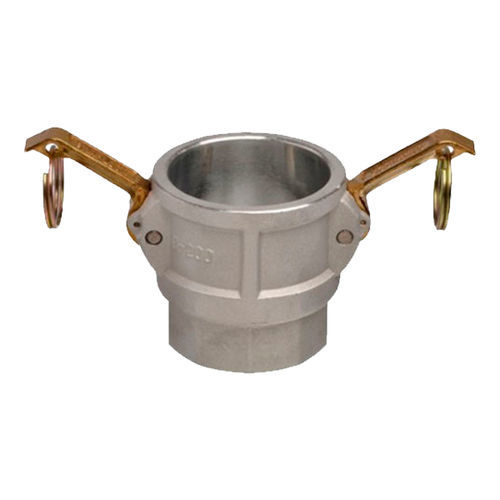

Fixed camlock with female thread – type D. Fixed socket with internal thread for quick hose and pipe connections in fluid transfer applications.

Available versions by material
Aluminium
Item | Code | Int. Ø (in.)
C746990 | 4699 | ½”
C747000 | 4700 | ¾”
C747010 | 4701 | 1”
C747070 | 4710 | 1¼”
C747020 | 4702 | 1½”
C747030 | 4703 | 2”
C747040 | 4704 | 2½”
C747050 | 4705 | 3”
C747060 | 4706 | 4”
C749723 | 4707 | 5”
C747080 | 4708 | 6”
C749724 | 4709 | 8”

Brass
Item | Code | Int. Ø (in.)
C746991 | 4699/1 | ½”
C747001 | 4700/1 | ¾”
C747011 | 4701/1 | 1”
C747071 | 4710/1 | 1¼”
C747021 | 4702/1 | 1½”
C747031 | 4703/1 | 2”
C747041 | 4704/1 | 2½”
C747051 | 4705/1 | 3”
C747064 | 4706/1 | 4”
– | 4707/1 | 5”
– | 4708/1 | 6”

Stainless Steel
Item | Code | Int. Ø (in.)
C746992 | 4699/2 | ½”
C747002 | 4700/2 | ¾”
C747012 | 4701/2 | 1”
C747072 | 4710/2 | 1¼”
C747022 | 4702/2 | 1½”
C747032 | 4703/2 | 2”
C747042 | 4704/2 | 2½”
C747052 | 4705/2 | 3”
C747062 | 4706/2 | 4”
C747074 | 4707/2 | 5”
| 4708/1 | 6”

Polypropylene
Item | Code | Int. Ø (in.)
C746993 | 4699/3 | ½”
C749771 | 4914/3 | ½”-¾”
C747003 | 4700/3 | ¾”
C747013 | 4701/3 | 1”
C747073 | 4710/3 | 1¼”
C747016 | 4915/3 | 1¼”-1½”
C747023 | 4702/3 | 1½”
C747033 | 4703/3 | 2”
C747053 | 4705/3 | 3”
C747066 | 4706/3 | 4”

Technical specifications

• Product: Fixed camlock with female thread – type D
• Available materials: Aluminium, Brass, Stainless Steel, Polypropylene
• Available internal diameters (inches): ½”, ¾”, 1”, 1¼”, 1½”, 2”, 2½”, 3”, 4”, 5”, 6”, 8” (varies by material)
• Full item codes provided per material and size (see tables above)
